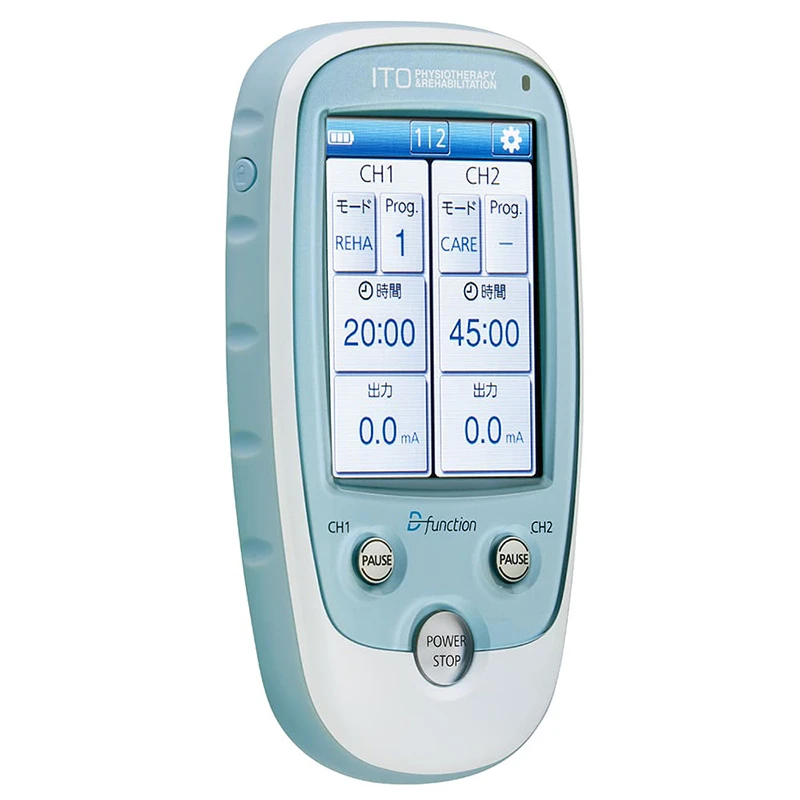

D function
D function

Features

SAFE DEFAULT OUTPUT INTENSITY

SAFE DEFAULT OUTPUT INTENSITY

The default intensity setting restricts high electrical current output to safely treat the sensitive head and neck regions.

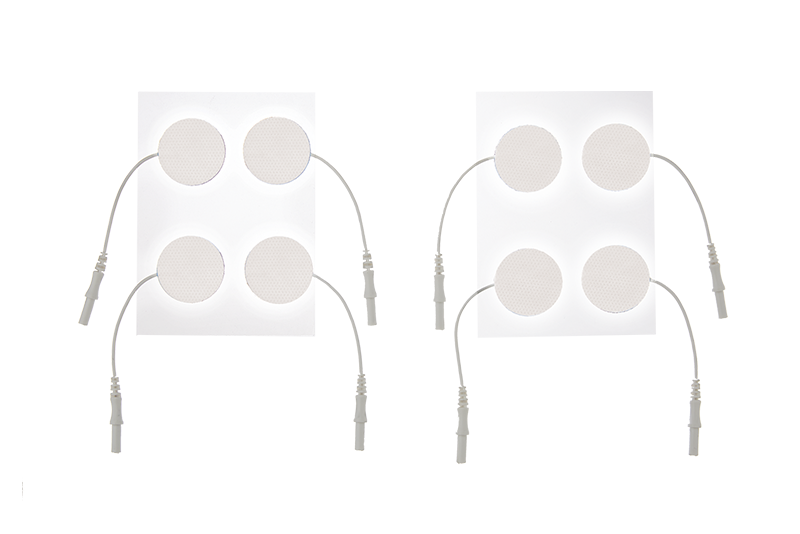

SINGLE-USE ELECTRODE FOR HYGIENIC CONCERN

SINGLE-USE ELECTRODE FOR HYGIENIC CONCERN

Specifically developed highly hygienic disposable electrode (D function pads) are adopted.

DUAL CHANNELS WITH FLEXIBLE CONTROL SETTINGS

The device has 2 independent channels and each channel can flexibly be controlled and set to effectively treat TMJ simultaneously even when they present different conditions.

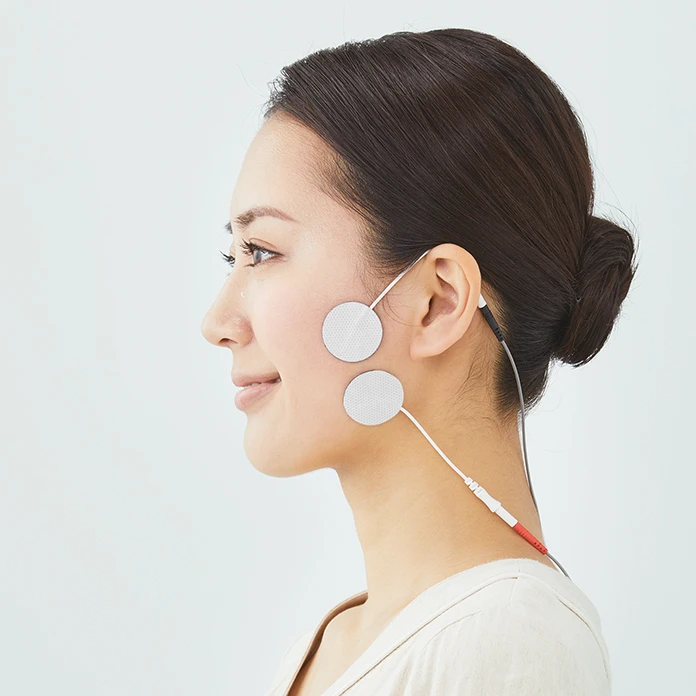

TMJ and Masseter muscles
left side
the frontY
right side

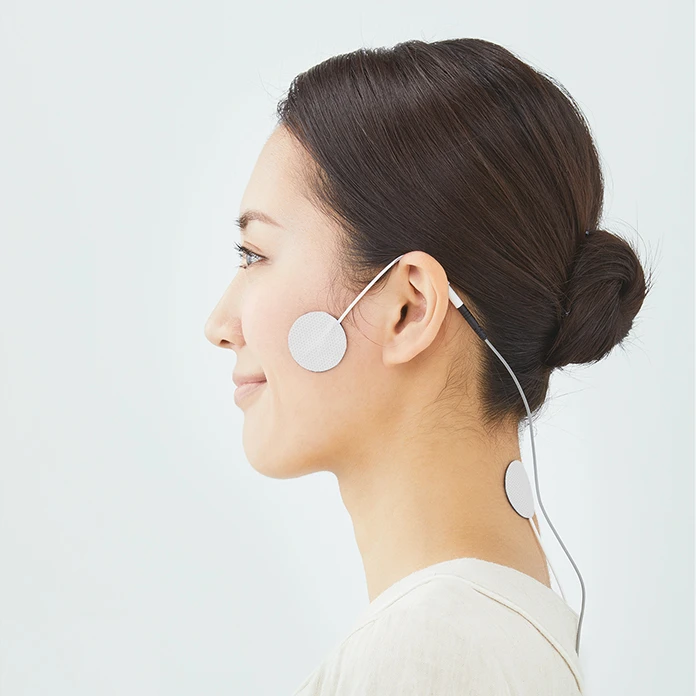

TMJ and Cervical spine
left side

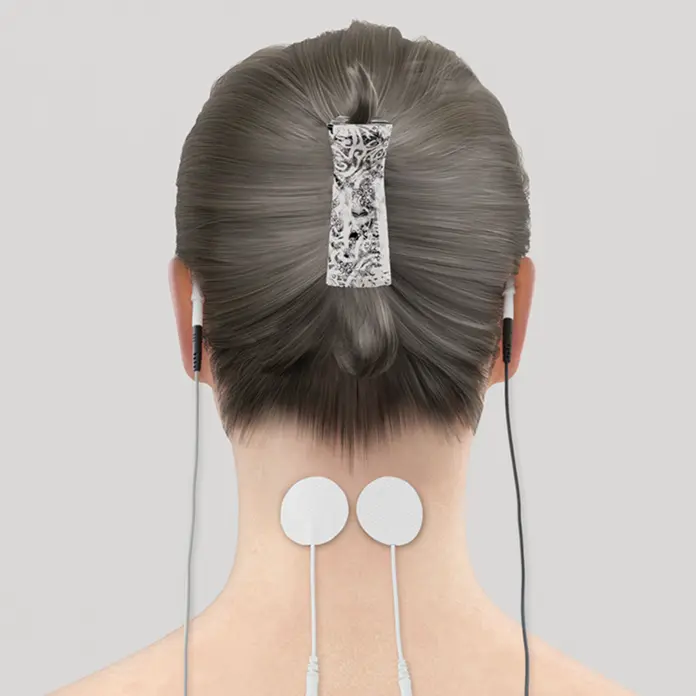

the back
right side

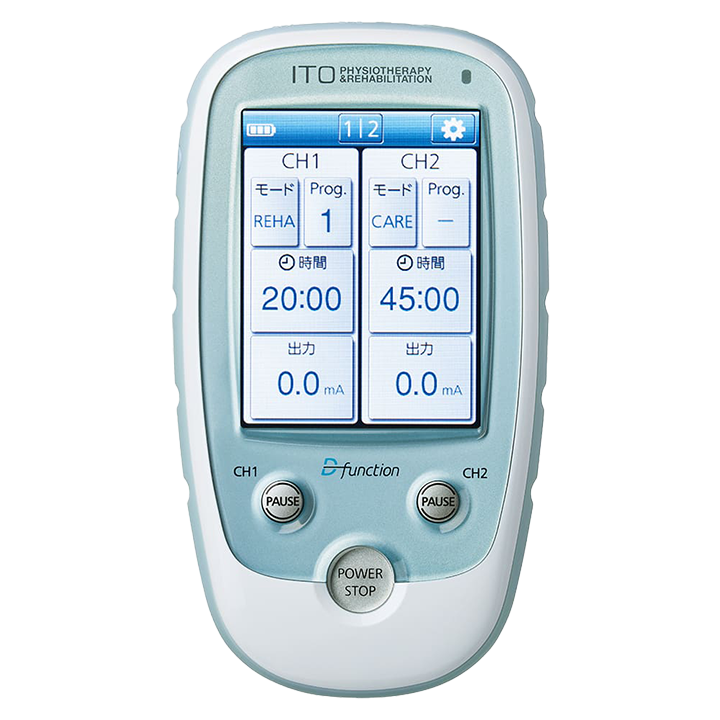

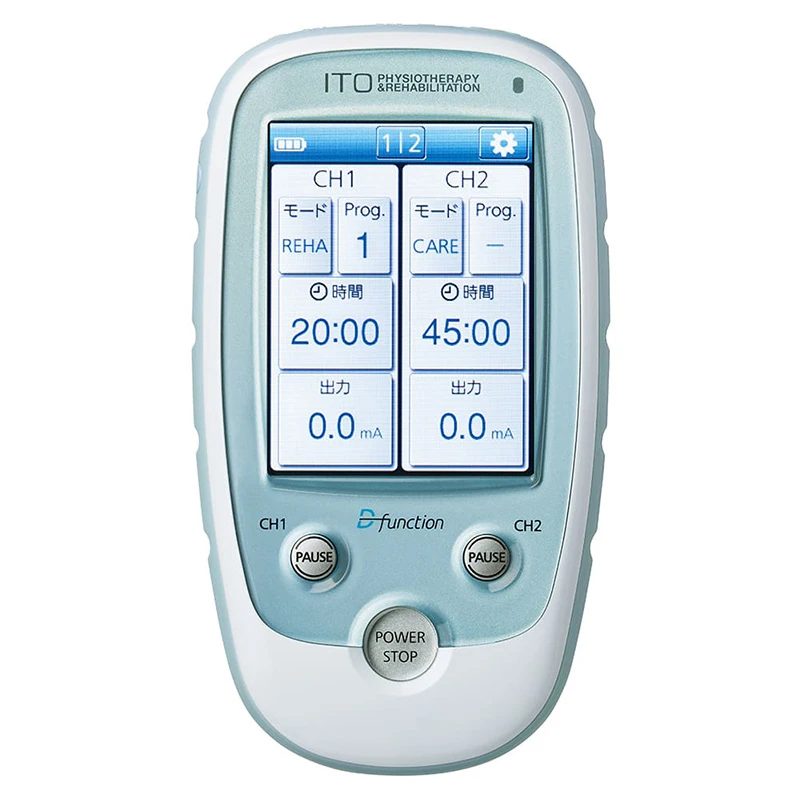

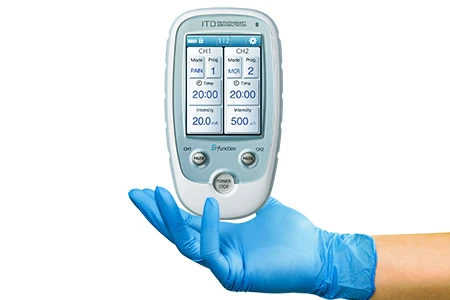

PALM-FITTING SIZE DEVICE

PALM-FITTING SIZE DEVICE

The handy size ensures no restriction in usage environment. The easy-to-use touch display can be operated with surgical gloves.

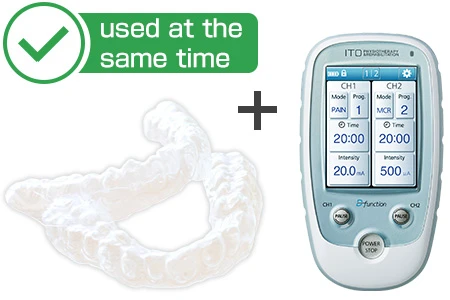

COMBINATION WITH OTHER APPLICATIONS

COMBINATION WITH OTHER APPLICATIONS

D function can effectively be used for pre-treatment in balancing oral muscles. It is also useful as co-treatment with conventional TMJ disorder interventions such as splint therapy.

WIDE RANGE OF TREATMENT OPTIONS

The adopted functional electric waveforms and programs match the multiple needs for TMJ treatment.

  • PAIN mode

    For muscle re-education and blood flow increase.

    • Sweep (Sweep)
    • Surge (Surge)
    • Burst (Burst)
  • CARE mode

    Pain relief and muscle relaxation for TMJ.

    Constant (Constant)
  • MCR mode

    For sensitive skin.

    Constant (Constant)

Specifications

Power supply DC 7.4 V (battery) / DC 12 V (AC Adaptor)
Power consumption 30 VA
Number of channels 2
Display Full-color, 3.5" LCD touch screen
Maximum amplitude (peak) 80 mA
Frequency CARE: 0.67 Hz(fixed), PAIN: 200 Hz (max.), MCR: 400 Hz (max.)
Timer Max. 60 min. (Max. 480 min. in MCR mode)
Safety class according to IEC 60601-1 Class II / Internally powered equipment, Type BF
Dimensions 84 (W) x 23.5 (D) x 151 (H) mm
Weight 230 g (including a battery)
Treatment mode CARE, PAIN, MCR
Output mode Surge, Sweep, Burst, Constant
