ES-130

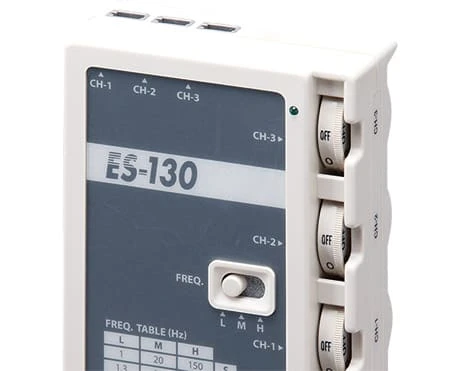

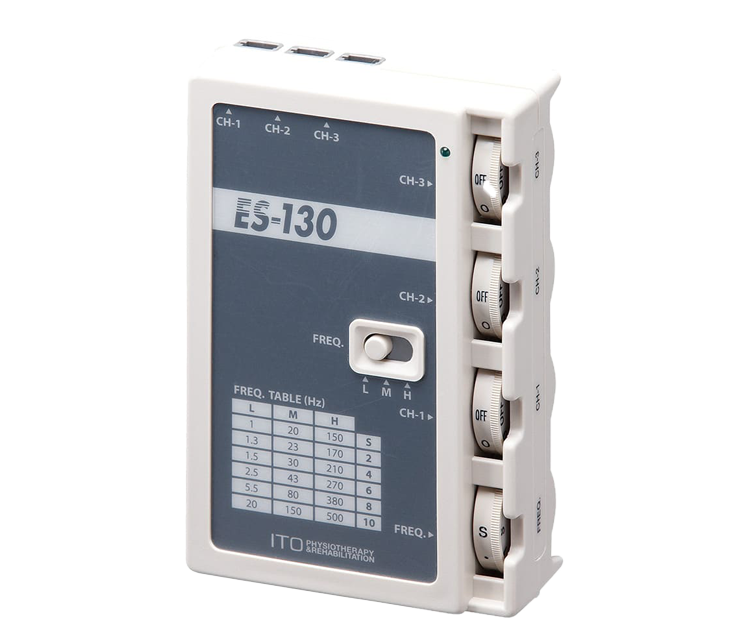

3-channel Palm-sized ElectroacupunctureES-130

The Most Popular Electroacupuncture Device with 3 Output Channels

Features

Inquiry

Features

SEMI-INDEPENDENT 3 ELECTRO STIMULATION CHANNELS

SEMI-INDEPENDENT 3 ELECTRO STIMULATION CHANNELS

Semi-independent 3 electro stimulation channels allow to treat for various parts of body simultaneously. Semi-independent channels mean that you can apply different current intensity for each channel.

PORTABILITY

PORTABILITY

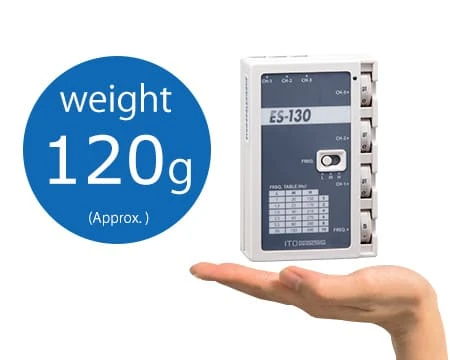

As the weight of the unit is approximately 120 g (without battery) and the unit size is very compact, you can easily bring them anywhere you like.

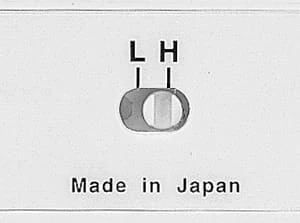

DUAL INTENSITY SETTING

DUAL INTENSITY SETTING

Low / High intensity can be easily set by Selector Switch located at the back side of main unit.

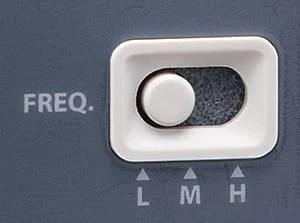

FREQUENCY RANGE SELECTOR SWITCH

FREQUENCY RANGE SELECTOR SWITCH

You can set ranges of frequency below by using selector switch.

  1. L (Low) = 1–20 Hz
  2. M (Medium) = 20–150 Hz
  3. H (High) = 150–500 Hz

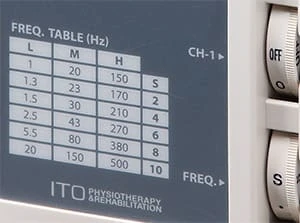

FREQUENCY TABLE & FINE FREQUENCY ADJUSTMENT DIAL

FREQUENCY TABLE & FINE FREQUENCY ADJUSTMENT DIAL

You can easily set particular frequency with the table and the dial.

Specifications

Power supply DC 9 V
Number of channels 3 semi-independent
Safety class according to IEC 60601-1 Internally powered equipment, Type BF
Dimensions 63 (W) x 27 (D) x 96 (H) mm
Weight 120 g (without battery)
Maximum amplitude 14 mArms
Frequency 1–500 Hz
Pulse shape Biphasic rectangular waveform
Phase duration 100 μs
