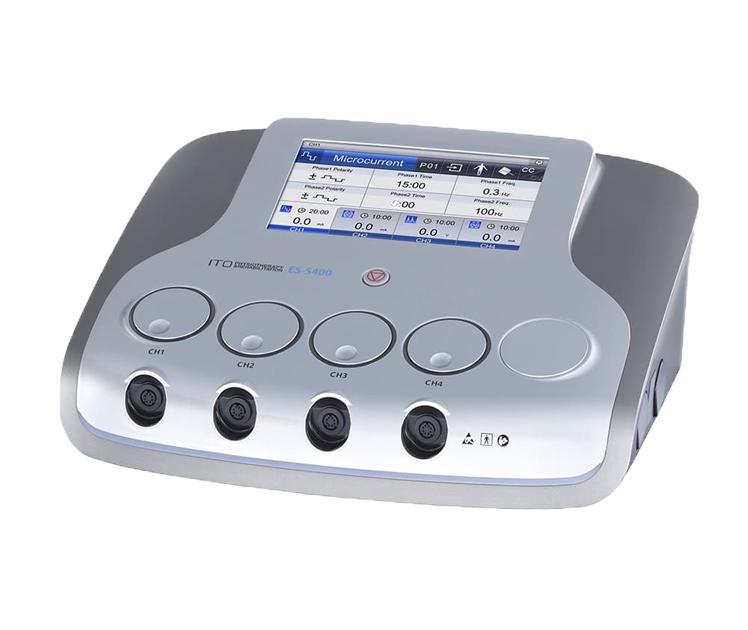

ES-5400
ES-5400
ES-5400

Features

4 INDEPENDENT ELECTROTHERAPY CHANNELS

4 INDEPENDENT ELECTROTHERAPY CHANNELS

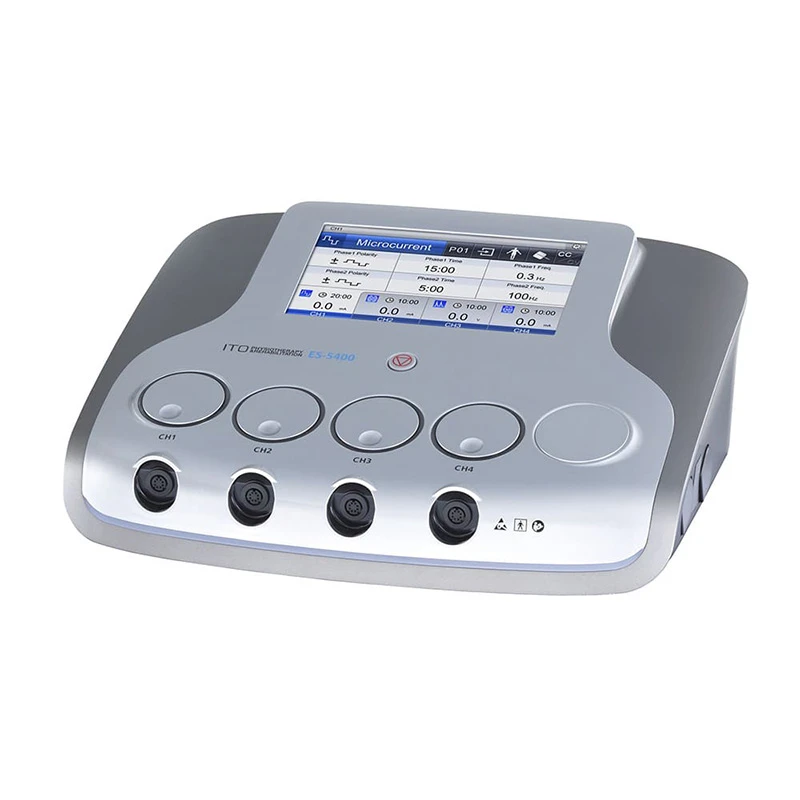

ES-5400 is electrotherapy unit with four independent channels.
With four channels, multiple patients can be simultaneously treated, which can contribute to saving your time.
Independent channels mean that you can apply different current modes for each channel. It is possible to stimulate local tissues with different currents at the same time. This can provide very efficient result.

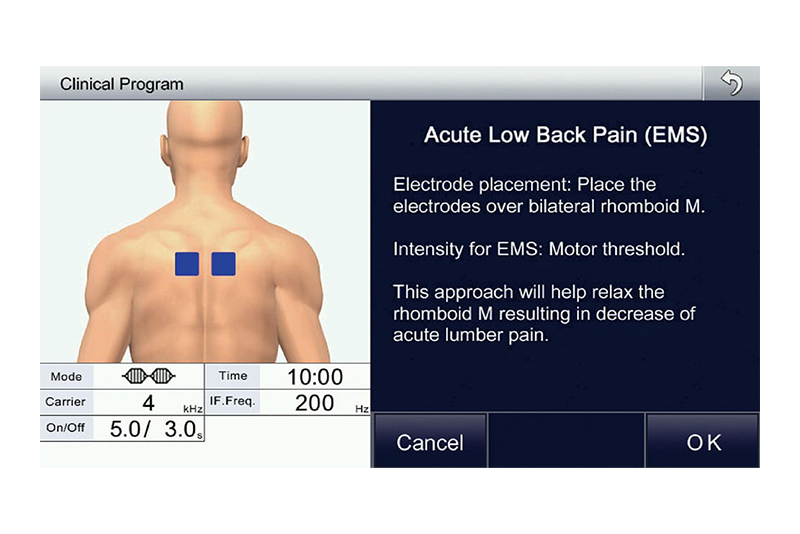

28 EFFECTIVE CLINICAL PROGRAMS

28 EFFECTIVE CLINICAL PROGRAMS

You can simply choose the area to be treated from Human Body Diagram. 28 therapy parameters are pre-programmed for over 20 types of typical pathologies. By using these parameters, you can quickly accumulate know-how of treatment for various pathologies. All the pre-programmed parameters can be modified to suit your particular needs.

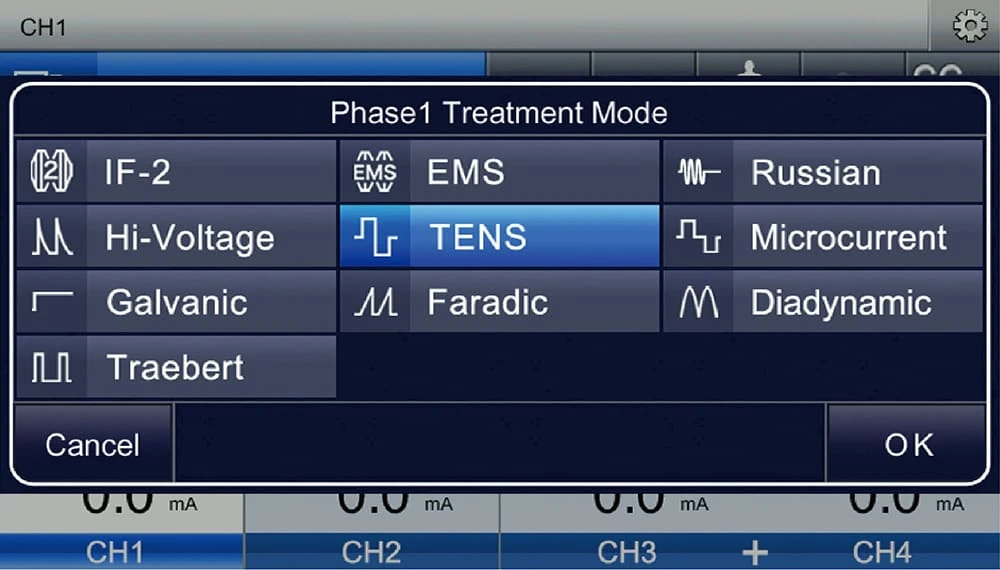

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED

AC: 4-pole IF, 2-pole IF, EMS, Russian, TENS, High Voltage (HV), Microcurrent (MCR)
DC: Galvanic, Faradic, Diadynamic (DF, MF, CP, CP-ISO, LP, RS), Traebert (Ultra Reiz)
Diagnostic: I/T curve and AQ

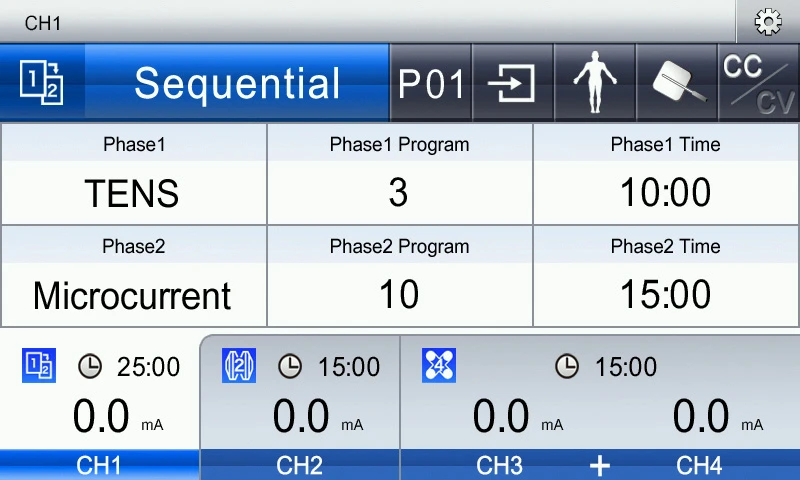

SEQUENTIAL MODE

SEQUENTIAL MODE

This mode allows you to apply two designated therapeutic courses continuously without having to modify unit parameters.

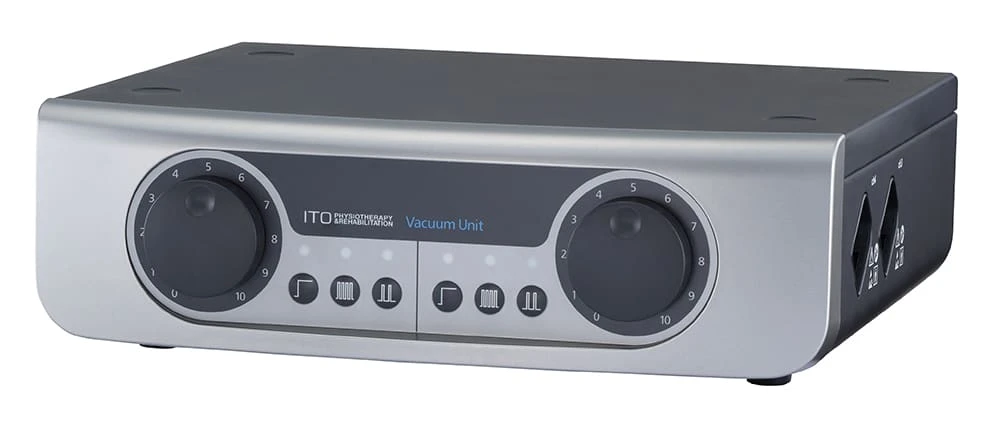

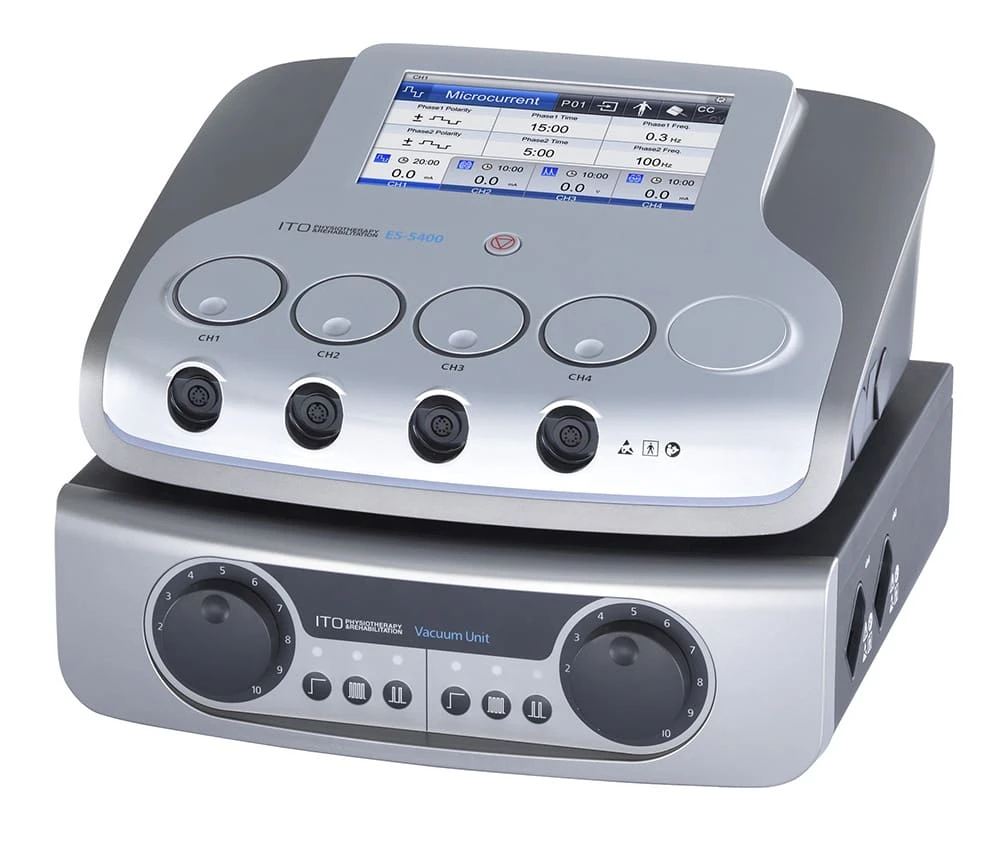

EXCLUSIVE VACUUM UNIT AVAILABLE (OPTIONAL)

EXCLUSIVE VACUUM UNIT AVAILABLE (OPTIONAL)

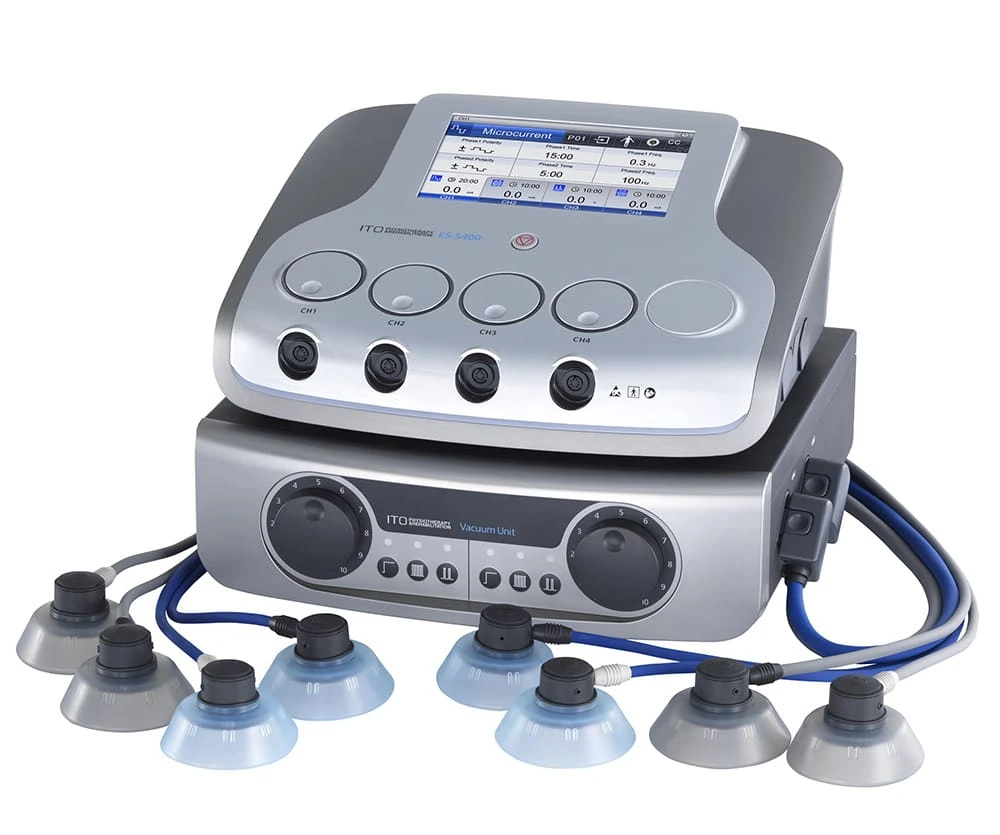

SU-540 is exclusively made for and combined to ES-5400. This vacuum unit adopts blow-out system which does not pull dusts nor contain humidity inside vacuum electrode. Therefore, SU-540 minimizes your work effort in maintenance.

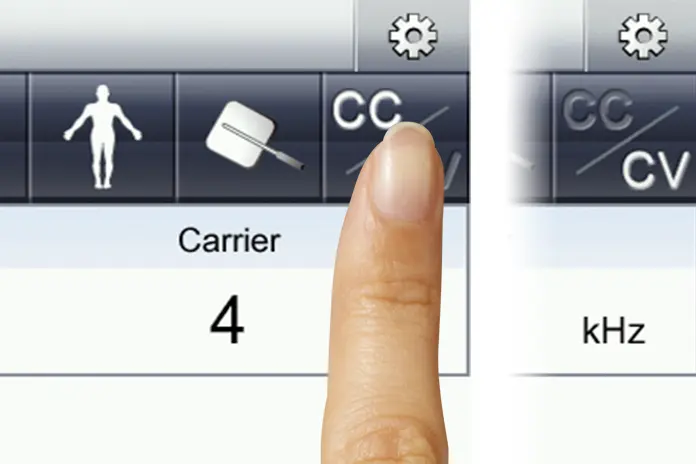

CONSTANT CURRENT / CONSTANT VOLTAGE MODES

CONSTANT CURRENT / CONSTANT VOLTAGE MODES

Depending on current modes, you can select constant current mode (CC) or constant voltage mode (CV). CV mode automatically adjusts the amount of current transferred to skin when the device detects the change of resistance to the skin. This mode enhances safety.

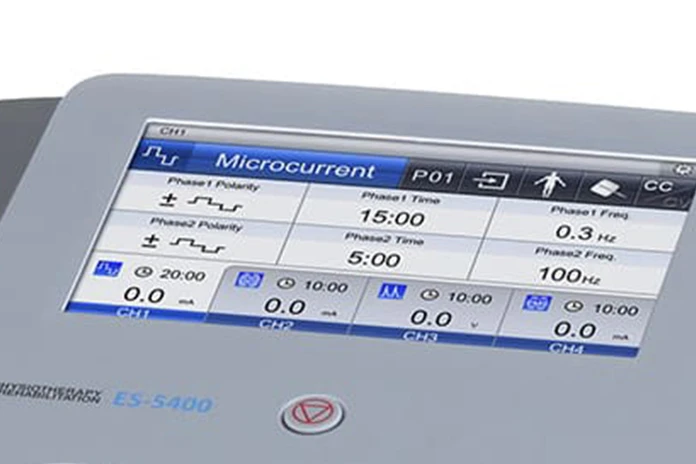

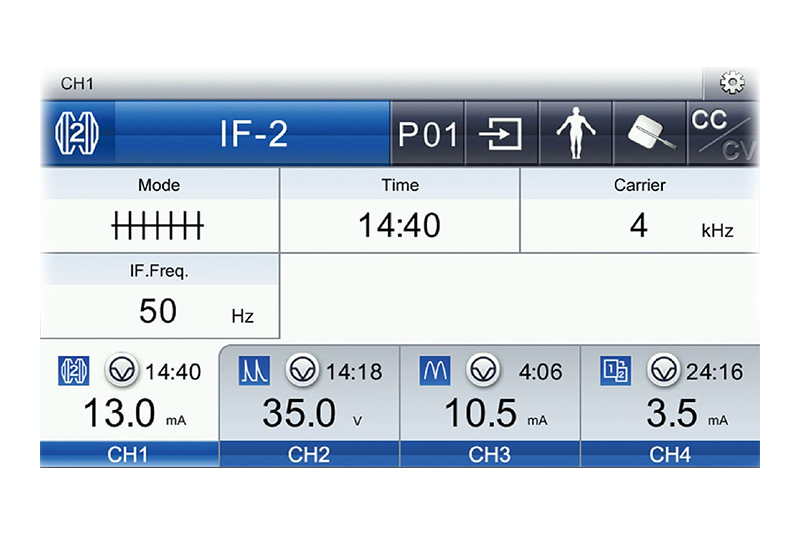

7-INCH TFT COLOR TOUCH SCREEN

7-INCH TFT COLOR TOUCH SCREEN

The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.

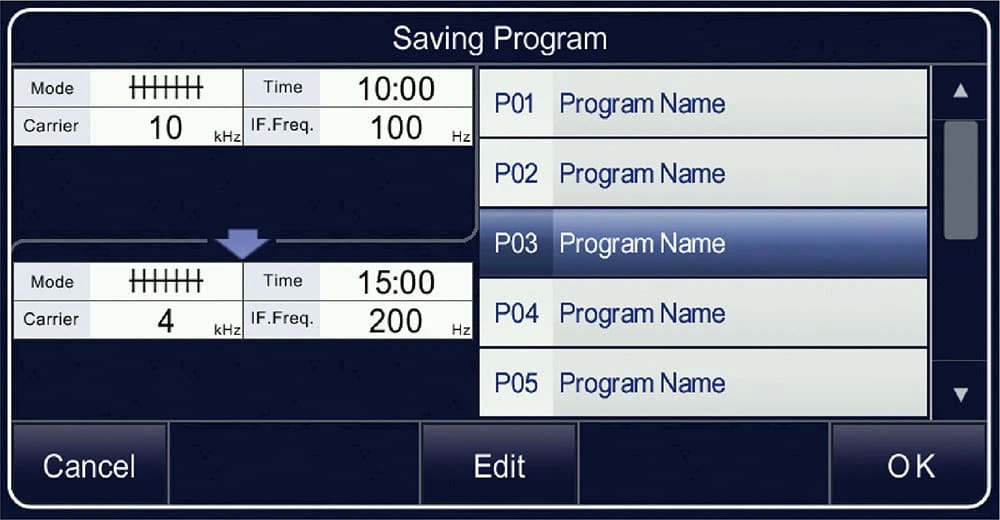

120 MEMORABLE PROGRAM NUMBERS

120 MEMORABLE PROGRAM NUMBERS

You can save 120 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.

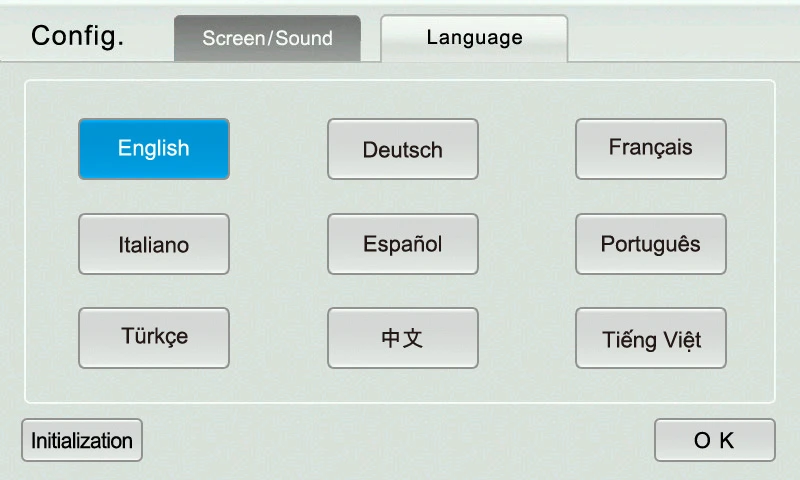

MULTI LANGUAGES

MULTI LANGUAGES

You can select language from English, German, French, Spanish, Italian, Portuguese, Turkish, Chinese and Vietnamese.

Specifications

Power supply AC 100–240 V, 50/60 Hz
Power consumption 150 VA
Number of channels 4
Display Full-color, 7" LCD touch screen
Safety class according to IEC 60601-1 Class I, Type BF
Dimensions 345 (W) x 270 (D) x 145 (H) mm
Weight 2.5 kg
IF carrier frequency 2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz
Vector sweep (for IF-4) 0°, 15°, 30°, 45°
User-defined protocol memories 120
Pre-programmed clinical protocols 28
Timer Max. 60 min.

Current Details

Current Mode Waveform image Output mode Maximum amplitude (peak) Frequency
IF-4 IF-4 Constant, Sweep 100 mA 1-250 Hz
IF-2 IF-2 Constant, Sweep 100 mA 1-250 Hz
EMS EMS Surge Independent, Surge Co-Cont, Surge Alternate 100 mA 20-250 Hz
Russian Russian Surge Independent, Surge Co-Cont, Surge Alternate 100 mA 2.5 kHz
High Voltage (HV) High Voltage (HV) Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate 600 mA 0.5-200 Hz
TENS TENS Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate 100 mA 0.5-250 Hz
Microcurrent (MCR) Microcurrent (MCR) Constant 750 μA 0.2-400 Hz
Galvanic Galvanic Continuous, Interrupted 20 mA 0.95-15.8 Hz
Faradic Faradic Surge Independent 70 mA 20-250 Hz
Diadynamic Diadynamic DF, MF, CP, CP-ISO, LP, RS 70 mA 50 Hz or 100 Hz
Traebert Traebert Constant 70 mA 142 Hz
I/T Curve · AQ I/T Curve * AQ Constant 70 mA I/T Curve: 0.33-0.5 Hz
AQ: 0.33 Hz
