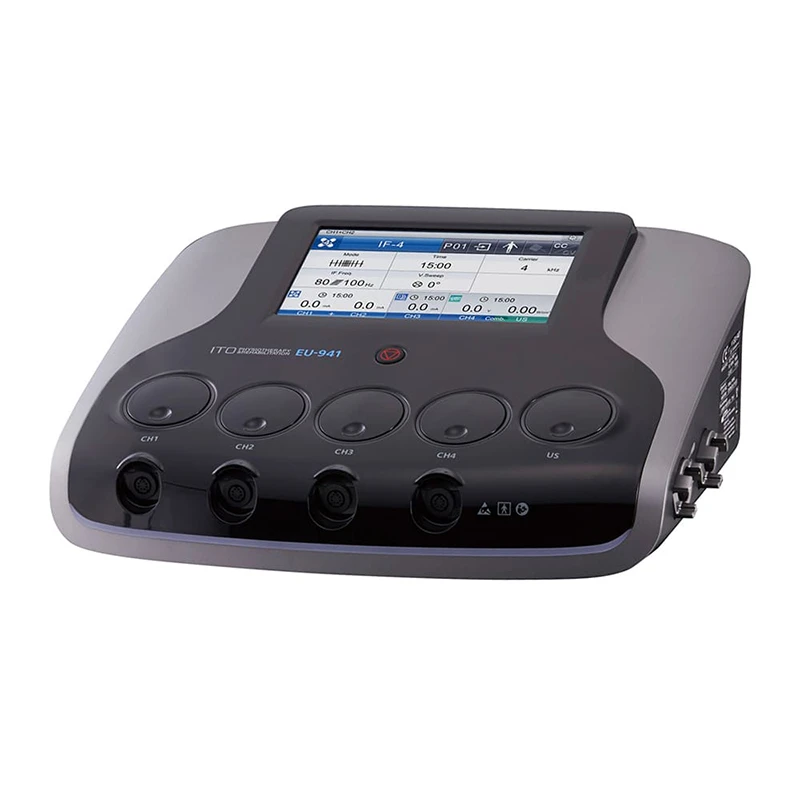

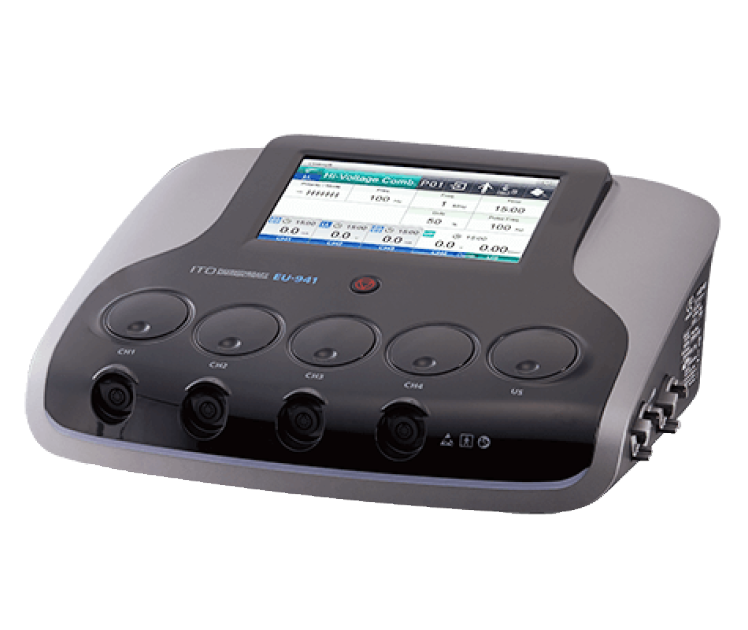

EU-941
EU-941
EU-941

Features

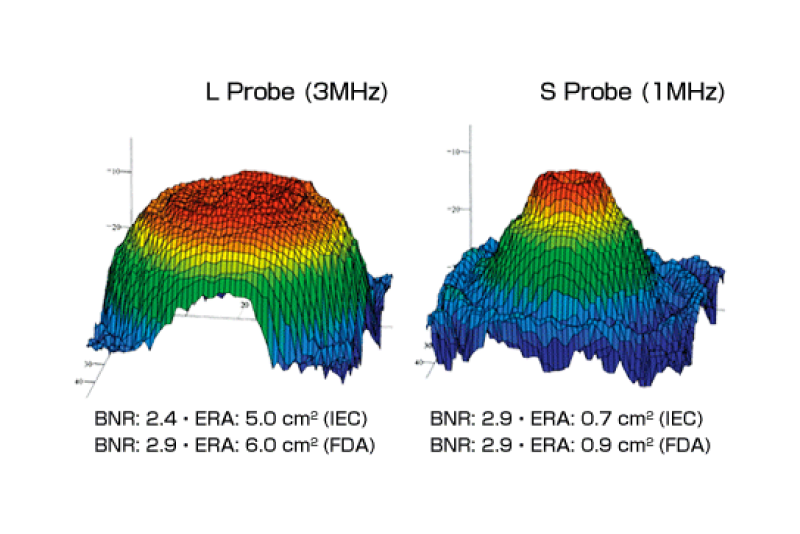

LOW BNR (Beam Non-uniformity Ratio)

LOW BNR (Beam Non-uniformity Ratio)

BNR is one of the indications for quality of the ultrasound beam. The BNR of EU-941 is 2.4 to 4.6 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

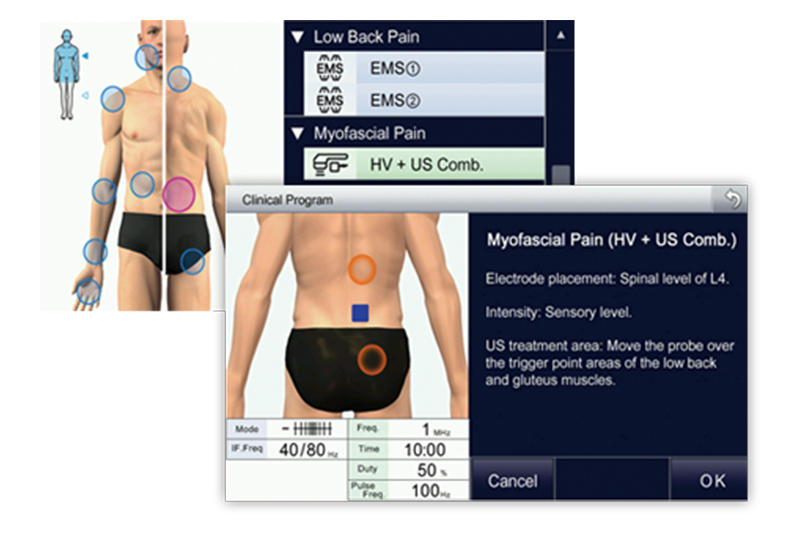

47 EFFECTIVE CLINICAL PROGRAMS FOR OVER 30 TYPES OF PATHOLOGIES

47 EFFECTIVE CLINICAL PROGRAMS FOR OVER 30 TYPES OF PATHOLOGIES

You can simply choose the area to be treated from Human Body Diagram. 47 therapy parameters are pre-programmed for over 30 types of typical pathologies. All the pre-programmed parameters can be modified to suit your particular needs.

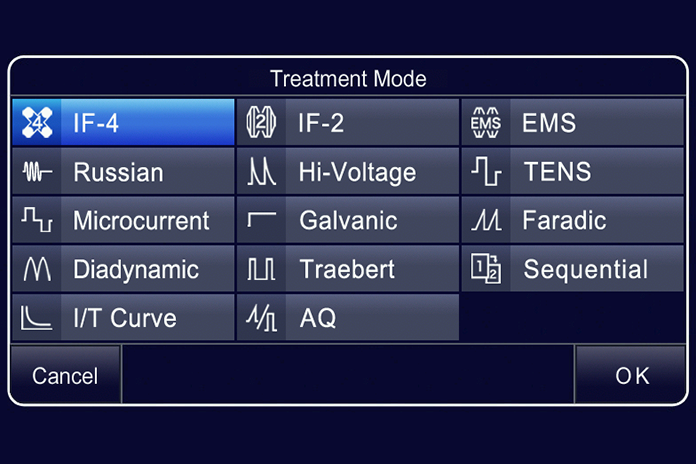

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED

13 TYPES OF FREQUENTLY USED CURRENT MODES INSTALLED

AC: IF-4, IF-2, EMS, Russian, TENS, High Voltage (HV), Microcurrent (MCR)
DC: Galvanic, Faradic, Diadynamic, Traebert (Ultra Reiz)
Diagnostic: I/T curve and AQ

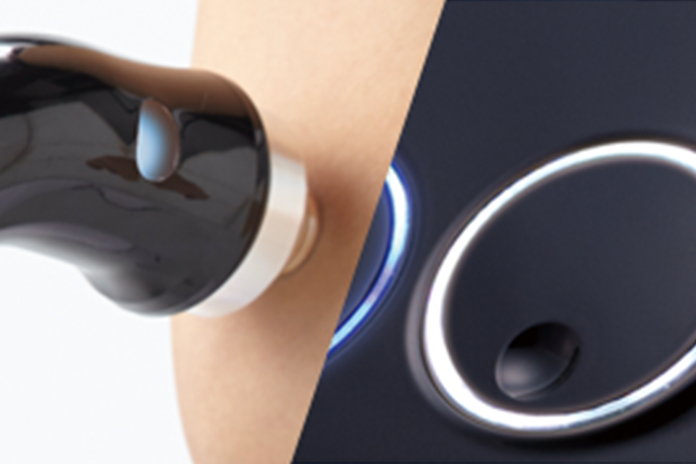

VISUAL PROBE CONTACT STATUS

VISUAL PROBE CONTACT STATUS

Clear light indications on both ultrasound probe and main unit to visually check whether the ultrasound energy is safely and effectively conducted into human body.

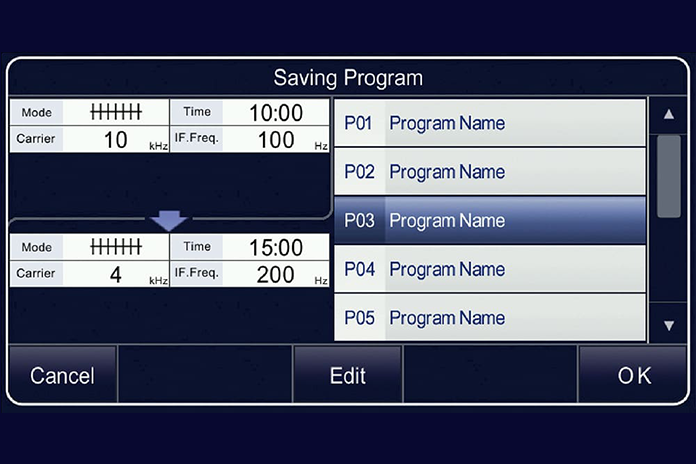

210 MEMORABLE PROGRAM NUMBERS

210 MEMORABLE PROGRAM NUMBERS

You can save 210 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.

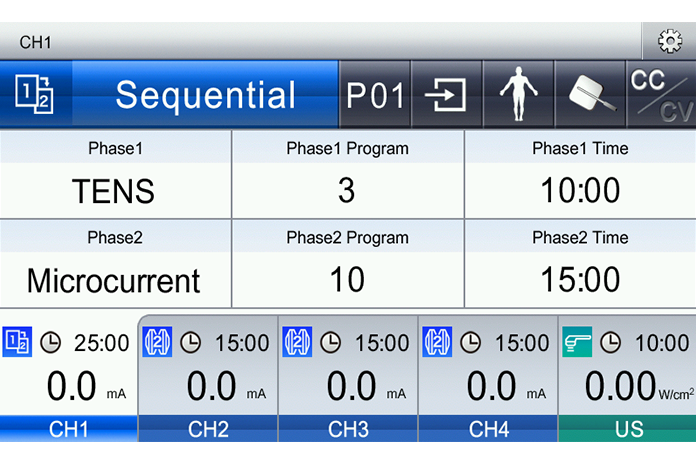

SEQUENTIAL MODE

SEQUENTIAL MODE

This user-friendly treatment mode allows you to apply two designated therapeutic courses continuously without having to modify unit parameters.

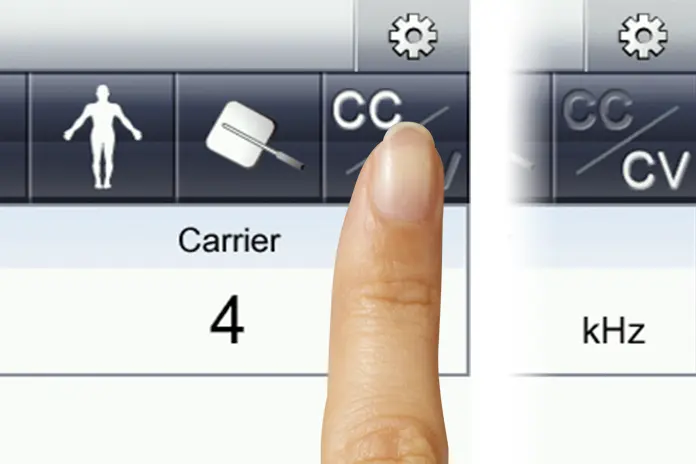

CONSTANT CURRENT / CONSTANT VOLTAGE MODES

CONSTANT CURRENT / CONSTANT VOLTAGE MODES

Depending on current modes, you can select constant current mode (CC) or constant voltage mode (CV). CV mode automatically adjusts the amount of current transferred to skin when the device detects the change of resistance to the skin. This mode enhances safety.

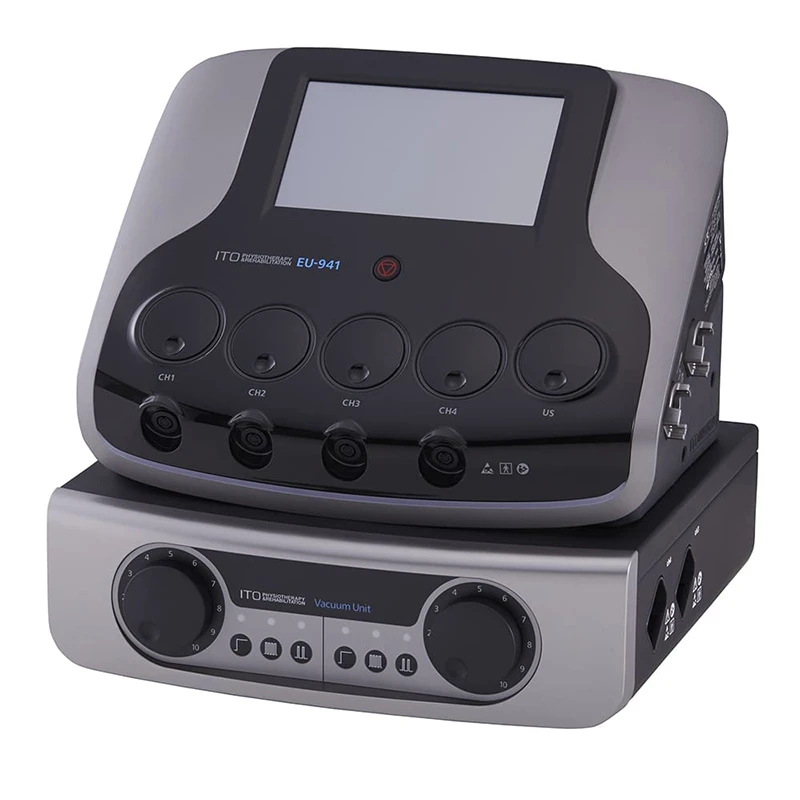

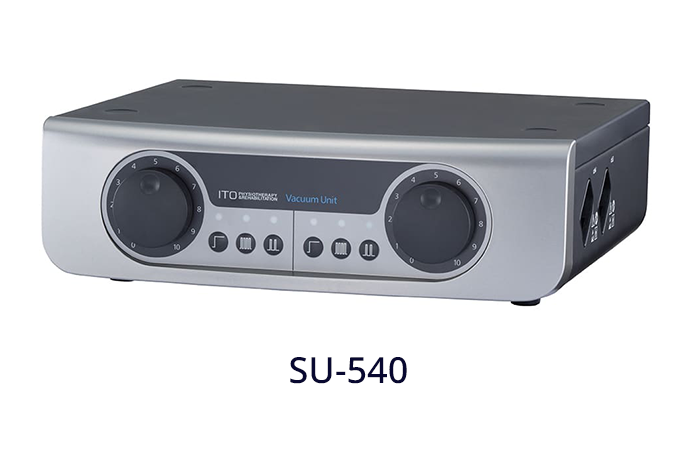

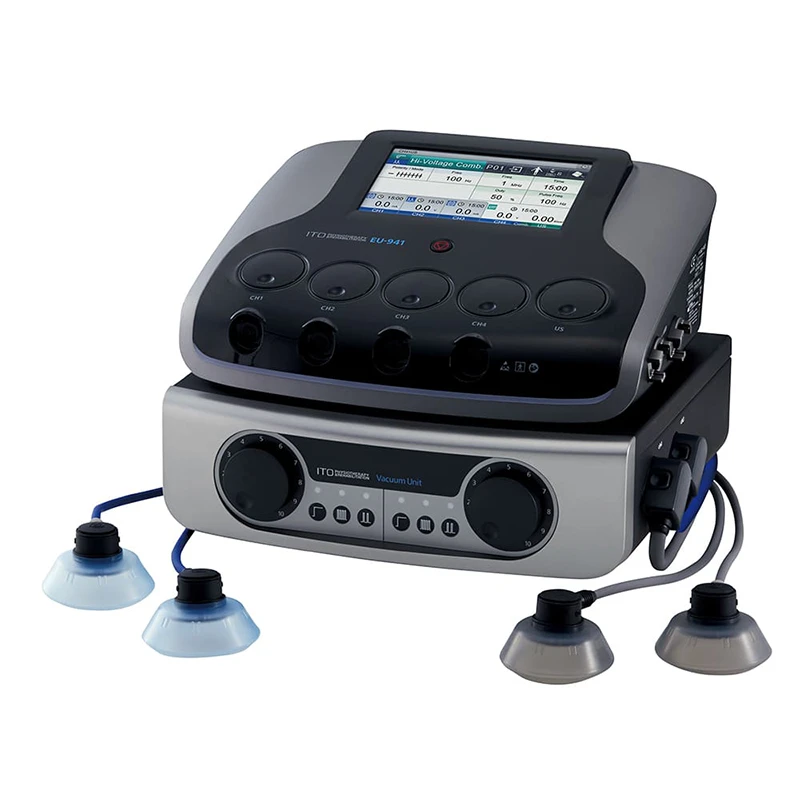

EXCLUSIVE VACUUM UNIT AVAILABLE (Optional)

EXCLUSIVE VACUUM UNIT AVAILABLE (Optional)

SU-540 is exclusively made for and combined to EU-941. Our unit adopts blow-out system which does not pull dusts nor contain humidity inside vacuum electrode. Therefore, our unit minimizes your work effort in maintenance.

MULTI-FREQUENCY TREATMENT PROBES (1MHz and 3MHz)

MULTI-FREQUENCY TREATMENT PROBES (1MHz and 3MHz)

Each probe is compatible with 1 MHz and 3 MHz. Treatment for various body parts is available by using L probe for broad body parts such as shoulder and waist, and S probe (optional accessory) for narrow ones such as finger and toes.

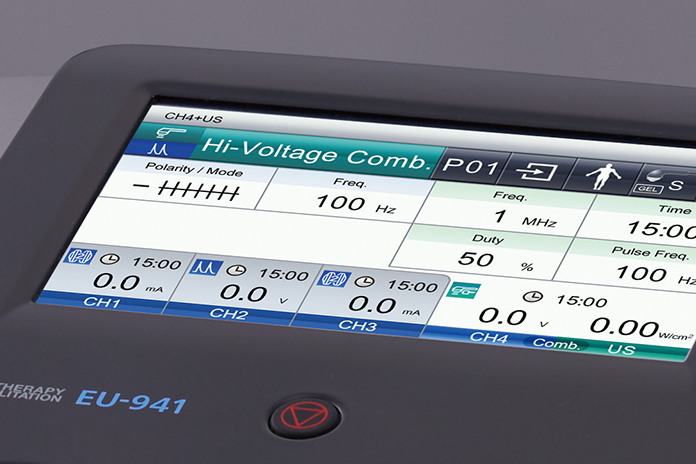

7-INCH TFT COLOR TOUCH SCREEN

7-INCH TFT COLOR TOUCH SCREEN

The large color touch screen dramatically improves visibility and functionality. The screen is 20% larger than the screen used in previous models.

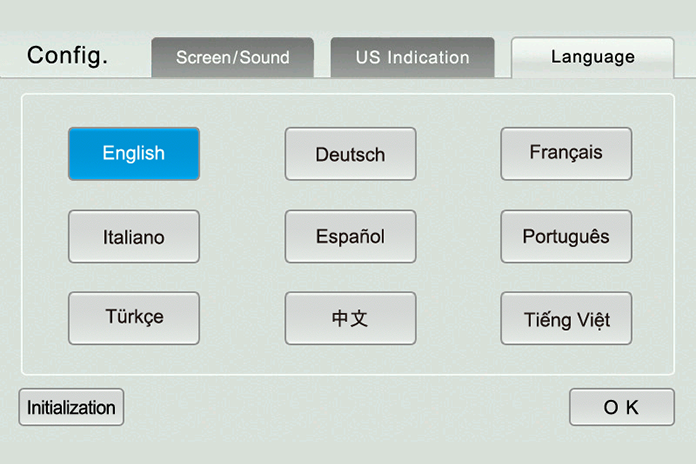

MULTI LANGUAGES

MULTI LANGUAGES

You can select language from English, German, French, Italian, Spanish, Portuguese, Turkish, Vietnamese & Chinese.

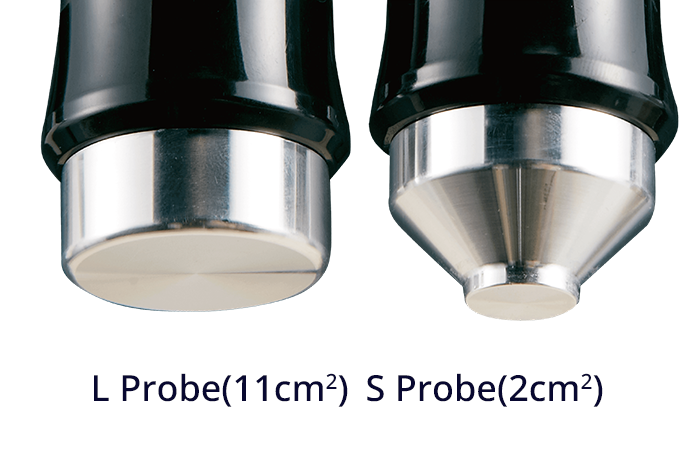

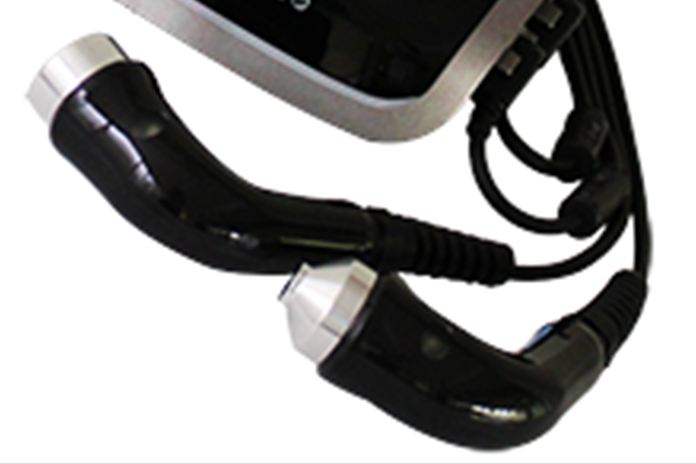

2 ULTRASOUND PROBES CONNECTABLE

2 ULTRASOUND PROBES CONNECTABLE

You can connect both small(2 cm2) and large(11 cm2) head ultrasound probes to quickly change the treatment head.

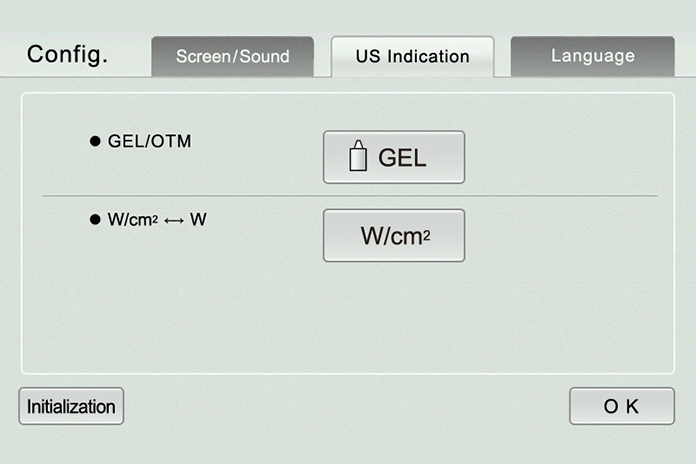

SELECTABLE COUPLING SENSITIVITY

SELECTABLE COUPLING SENSITIVITY

You can select the appropriate coupling sensitivity between ultrasound gel and medicated gel.

MOVIE

EU-941 Promotion Movie

Specifications

Power supply AC 100–240 V, 50/60 Hz
Power consumption 190 VA
Number of channels 5 independent (4 for electrotherapy, 1 for ultrasound)
Display Full-color, 7" LCD touch screen
Safety class according to IEC 60601-1 Class I, Type BF
Dimensions 350 (W) x 270 (D) x 145 (H) mm
Weight 4 kg

Electrotherapy

IF carrier frequency 2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz
Vector sweep (for IF-4) 0°, 15°, 30°, 45°
User-defined protocol memories 120
Pre-programmed clinical protocols 28
Timer Max. 60 min.

Ultrasound

Ultrasound mode Continuous, Pulsed (5%, 10%, 20%, 30%, 40%, 50%)
Ultrasound Intensity (max.) Continuous: 2 W/cm2, Pulsed: 3 W/cm2
Ultrasound frequency 1 MHz, 3 MHz
Pulse frequency 16 Hz, 48 Hz, 100 Hz
User-defined protocol memories 10 (for US) / 80 (for Combo)
Pre-programmed clinical protocols 18 (for US) / 1 (for Combo)
Timer Max. 30 min.
Number of US Probe connections 2
Probe head diameter
Large
37.5 mm
Small
16 mm
BNR US Probe head (IEC Standards)
Large
1 MHz: 4.6
3 MHz: 2.4
Small
1 MHz: 2.9
3 MHz: 2.4
ERA US Probe head (IEC Standards)
Large
1 MHz: 5.0 cm2
3 MHz: 5.0 cm2
Small
1 MHz: 0.7 cm2
3 MHz: 0.5 cm2
Probe cable length 2 m
Class of protection against ingress of harmful water IPX 7 (US Probe)

Current Details

Current Mode Waveform image Output mode Maximum amplitude (peak) Frequency
IF-4 IF-4 Constant, Sweep 100 mA 1-250 Hz
IF-2 IF-2 Constant, Sweep 100 mA 1-250 Hz
EMS EMS Surge Independent, Surge Co-Cont, Surge Alternate 100 mA 20-250 Hz
Russian Russian Surge Independent, Surge Co-Cont, Surge Alternate 100 mA 2.5 kHz
High Voltage (HV) High Voltage (HV) Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate 600 mA 0.5-200 Hz
TENS TENS Constant, Sweep, Burst, Surge Independent, Surge Co-Cont, Surge Alternate 100 mA 0.5-250 Hz
Microcurrent (MCR) Microcurrent (MCR) Constant 750 μA 0.2-400 Hz
Galvanic Galvanic Continuous, Interrupted 20 mA 0.95-15.8 Hz
Faradic Faradic Surge Independent 70 mA 20-250 Hz
Diadynamic Diadynamic DF, MF, CP, CP-ISO, LP, RS 70 mA 50 Hz or 100 Hz
Traebert Traebert Constant 70 mA 142 Hz
I/T Curve · AQ I/T Curve * AQ Constant 70 mA I/T Curve: 0.33-0.5 Hz
AQ: 0.33 Hz
