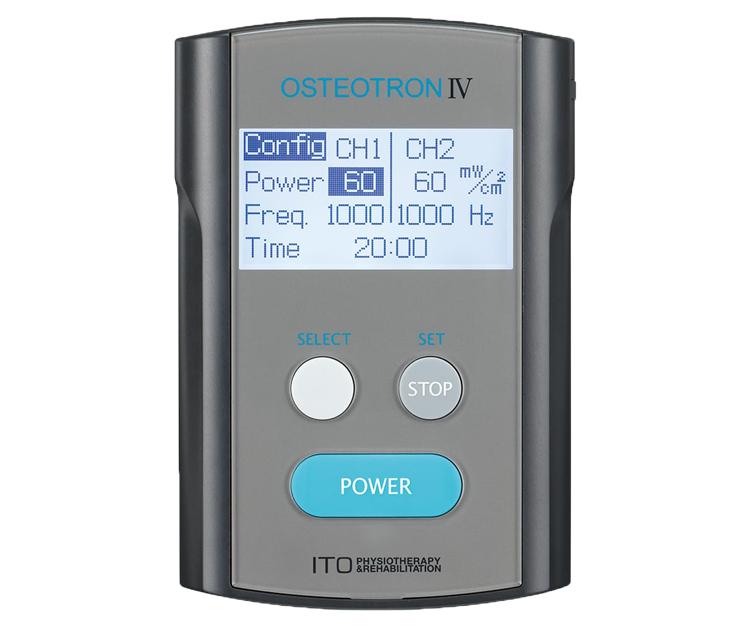

OSTEOTRON IV

Ultrasound Bone Growth StimulatorOSTEOTRON IV

Portable Ultrasound Bone Growth Stimulator with 2 output channels

Features

Inquiry

Features

2 OUTPUT CHANNELS

2 OUTPUT CHANNELS

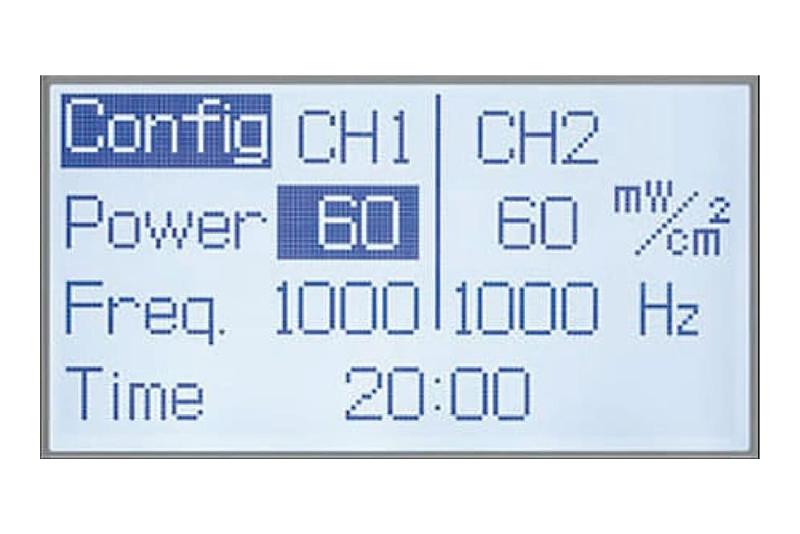

Simultaneous therapy for multiple areas is available with two output channels.

LOW BNR

LOW BNR

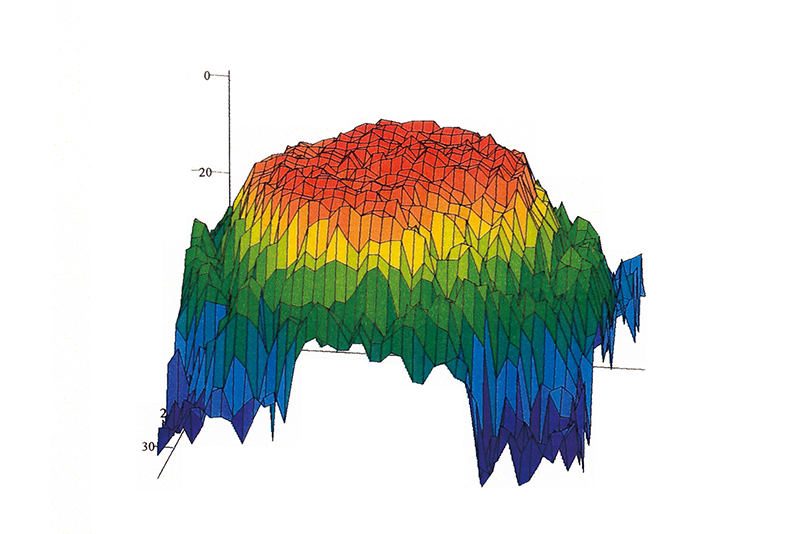

BNR is one of the indications for quality of the ultrasound beam. The BNR of OSTEOTRON IV is 3.0 to 3.5 (IEC standards), a significantly low ratio.

DUAL FREQUENCY

DUAL FREQUENCY

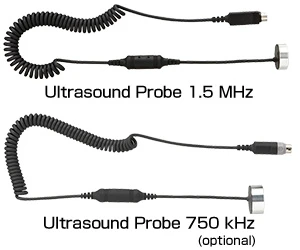

OSTEOTRON IV is capable of generating two frequencies (1.5 MHz and 750 kHz) by changing ultrasound probe.

EASY PROBE ATTACHMENT

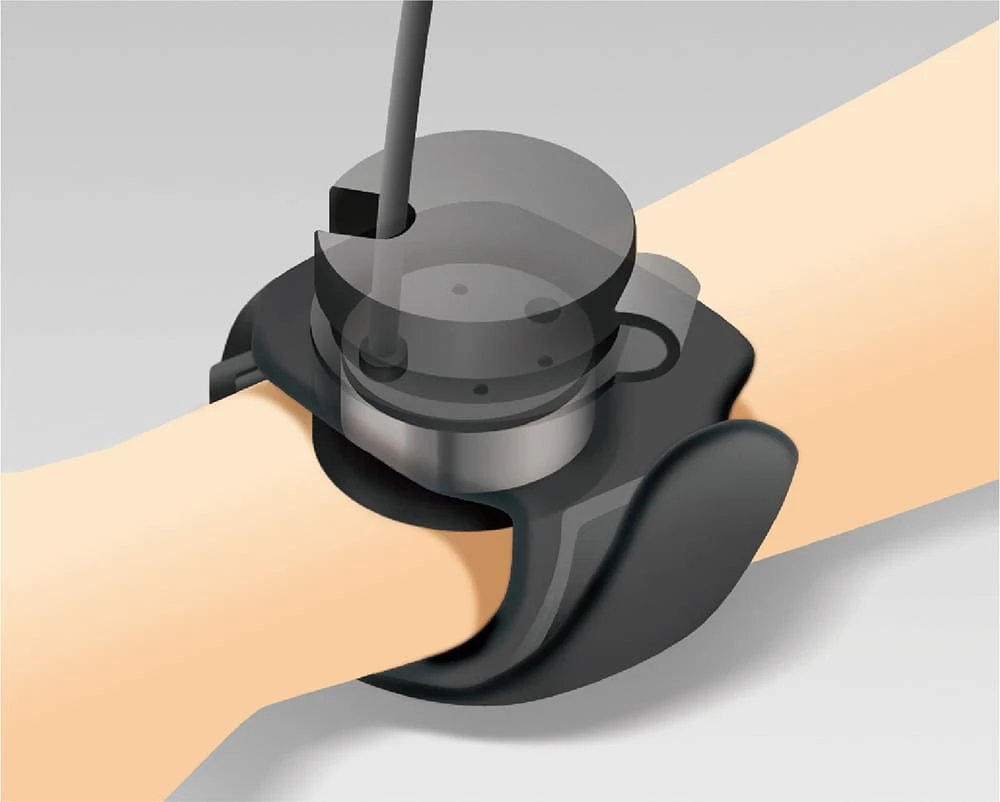

EASY PROBE ATTACHMENT Probe Retainer image (with Belt, for use with Cast)

The exclusive probe retainers are supplied as standard accessory which contribute to easy probe attachment.

PORTABILITY

PORTABILITY

As the weight of main unit is approx. 300 g and the unit size is very compact, you can easily bring them anywhere you like.

MULTI-POWER SUPPLY

MULTI-POWER SUPPLY

AC or battery operation is available.

SIMPLE OPERATION

SIMPLE OPERATION

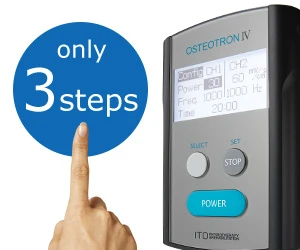

Only three-step output control to start treatment.

EASY TO CARRY

EASY TO CARRY

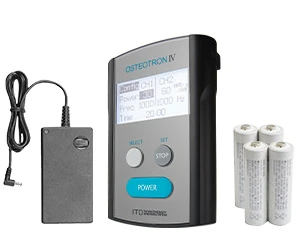

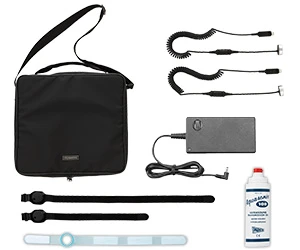

OSTEOTRON IV is supplied with a carrying case and all necessary accessories. Easy to transport all necessary items to have complete therapy.

Specifications

Power supply DC 4.8 V (battery) / DC 5 V (AC Adaptor)
Power consumption 8 VA
Number of channels 2
Display 3" LCD
Safety class according to IEC 60601-1 Class I / Internally powered equipment, Type BF
Dimensions 98 (W) x 40 (D) x 145 (H) mm
Weight 240 g (without batteries)
Ultrasound mode Pulsed (20% fixed)
Ultrasound intensity (max.) 30 mW/cm2, 45 mW/cm2, 60 mW/cm2 (SATA)
Ultrasound frequency 1.5 MHz, 750 kHz (optional)
Pulse frequency 100 Hz, 1000 Hz
Timer 20 min., 30 min.
Probe head diameter 32 mm
BNR US Probe head (IEC Standards)
1.5 MHz
3.5
750 kHz
3.0
ERA US Probe head (IEC Standards)
1.5 MHz
3.9 cm2
750 kHz
3.5 cm2
Probe cable length 0.5 m
Class of protection against ingress of harmful water IPX 7 (US Probe)
