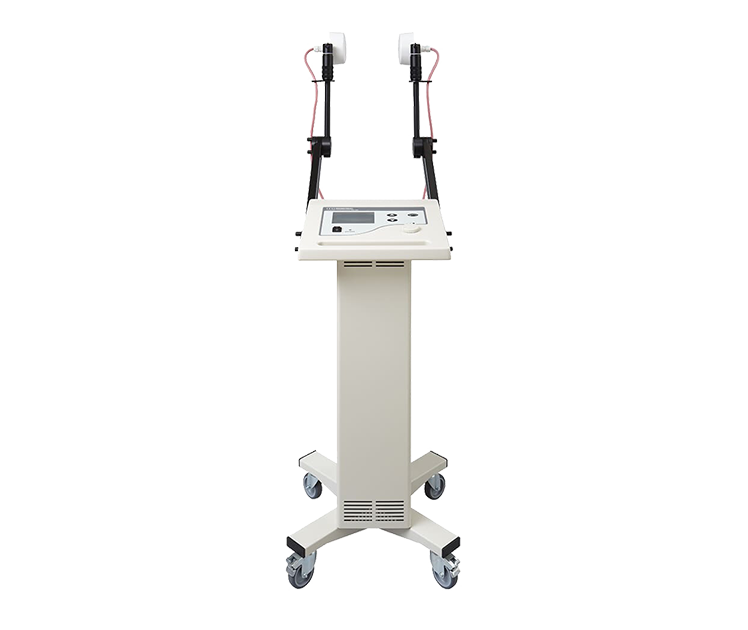

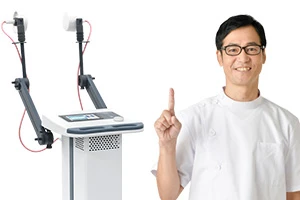

SW-1000
SW-1000

Features

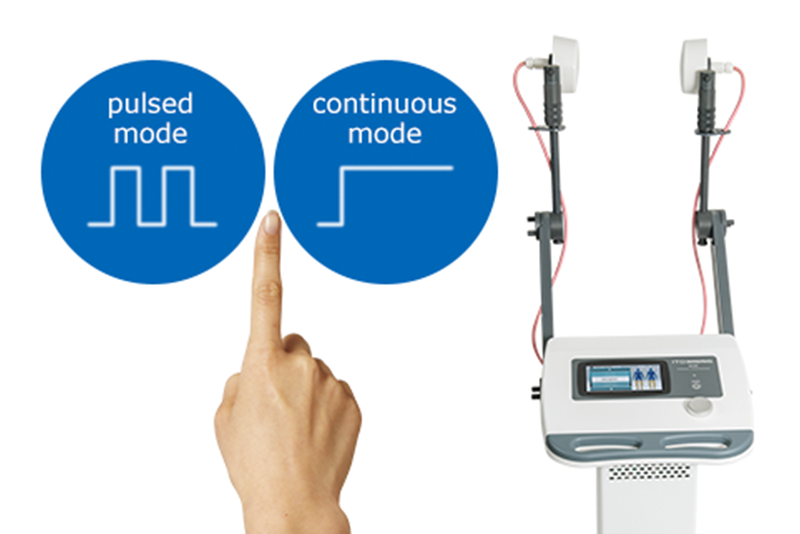

CONTINUOUS AND PULSED MODES SELECTABLE

CONTINUOUS AND PULSED MODES SELECTABLE

You can use both continuous and pulsed output modes in one unit.

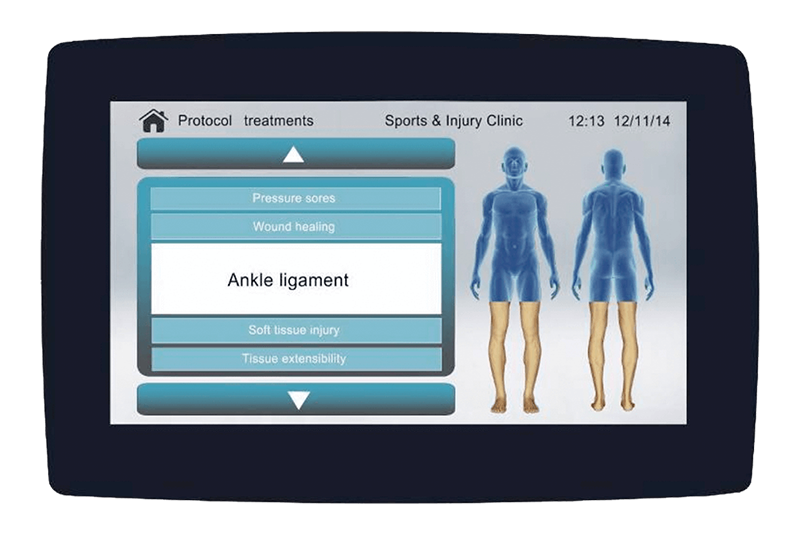

10 EFFECTIVE CLINICAL PROGRAMS

10 EFFECTIVE CLINICAL PROGRAMS

10 therapy parameters are pre-programmed for typical pathologies.

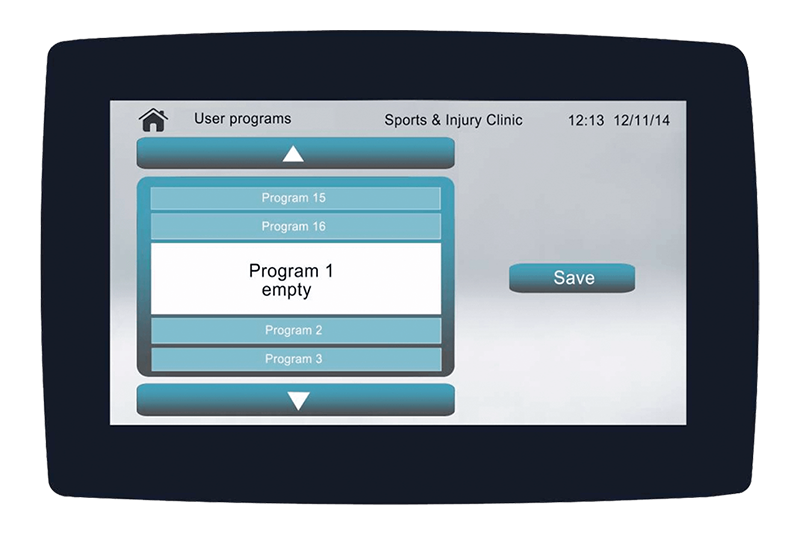

16 MEMORABLE PROGRAM NUMBERS

16 MEMORABLE PROGRAM NUMBERS

You can save 16 treatment parameters and quickly load & modify them as you like. This function facilitates treating patients.

3 TYPES OF PULSED OUTPUT MODES SELECTABLE

3 TYPES OF PULSED OUTPUT MODES SELECTABLE

You can choose from 1 in 3, 2 in 3 or 3 in 3 in pulsed mode.

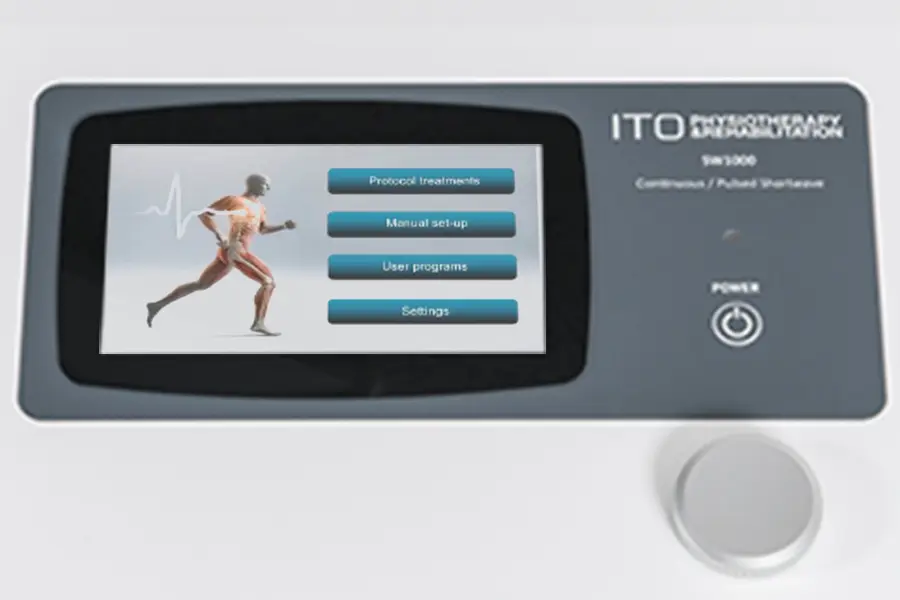

FULL COLOR LARGE TOUCH SCREEN INTERFACE

FULL COLOR LARGE TOUCH SCREEN INTERFACE

The large color touch screen dramatically improves visibility and functionality for therapist.

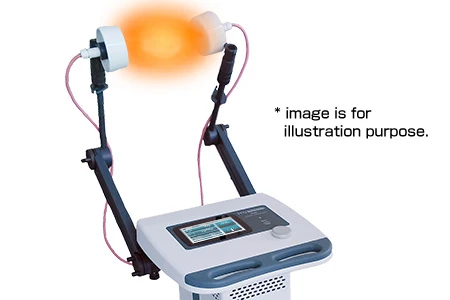

HIGH POWER OUTPUT

HIGH POWER OUTPUT

1000 W in pulsed mode and 400 W in continuous mode can be performed as maximum output power.

AUTO-TUNING FUNCTION INSTALLED

AUTO-TUNING FUNCTION INSTALLED

Auto-tuning function contributes to achieving precise output power.

Specifications

Power supply AC 100–240 V, 50/60 Hz
Power consumption 1 kVA
Display Full-color, 7" LCD touch screen
Safety class according to IEC 60601-1 Class I, Type BF
Dimensions 470 (W) x 470 (D) x 940 (H) mm (main unit)
Weight 38 kg (without electrodes)
Output mode Continuous, Pulsed (3 in 3, 2 in 3 or 1 in 3)
Maximum output power 1000 W (peak) in pulsed mode
400 W (mean) in continuous mode
Frequency 27.12 MHz
Pulse frequency 5 Hz, 10 Hz, 20 Hz, 30 Hz, 50 Hz, 80 Hz, 100 Hz, 200 Hz, 400 Hz, 600 Hz, 800 Hz
Pulse width 20 μs, 40 μs, 65 μs, 100 μs, 200 μs, 400 μs
Timer Max. 30 min.
