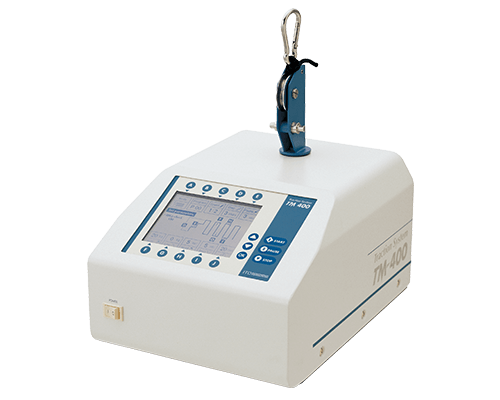

TM-400
TM-400

Features

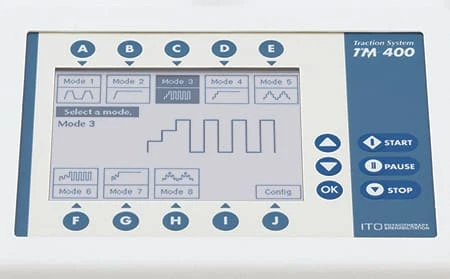

8 TRACTION MODES

8 TRACTION MODES

Most common effective 8 traction modes are installed. Parameter of each mode can be modified to suit your particular needs.

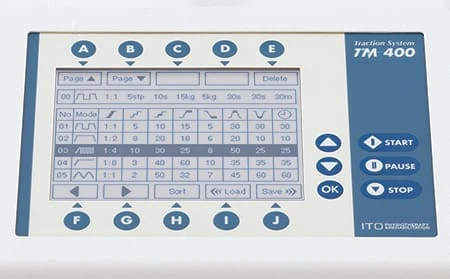

30 MEMORABLE PROGRAM NUMBERS

30 MEMORABLE PROGRAM NUMBERS

You can save 30 treatment parameters and quickly load & modify them as you like. This function facilitates treating numerous patients.

AUTOMATIC CALIBRATION FOR TRACTION FORCE

AUTOMATIC CALIBRATION FOR TRACTION FORCE

Innovative automatic calibration function for traction force is installed. It contributes to maintaining accurate and suitable traction force.

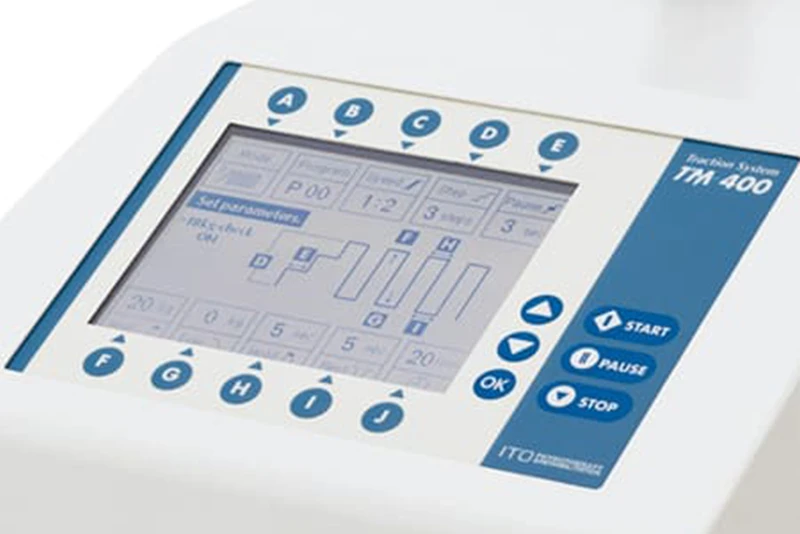

LARGE AND HIGH-VISIBILITY LCD SCREEN

LARGE AND HIGH-VISIBILITY LCD SCREEN

The large LCD display improves visibility and functionality.

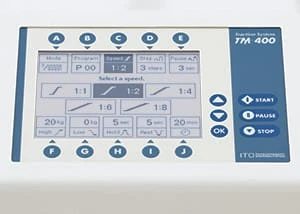

SELECTABLE PULLING SPEED

SELECTABLE PULLING SPEED

You can select pulling speed from 1:1, 1:2, 1:4, 1:6 and 1:8.

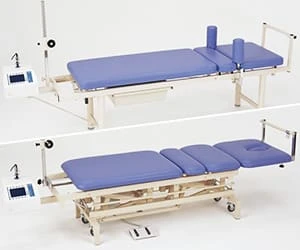

EXCLUSIVE TRACTION TABLE AVAILABLE (Optional)

EXCLUSIVE TRACTION TABLE AVAILABLE (Optional)

Fixed Height Traction Table and Electric Variable Height Traction Table are exclusively made for TM-400. They can be supplied as optional accessory.

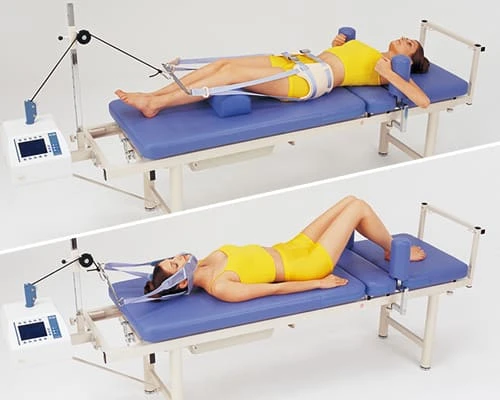

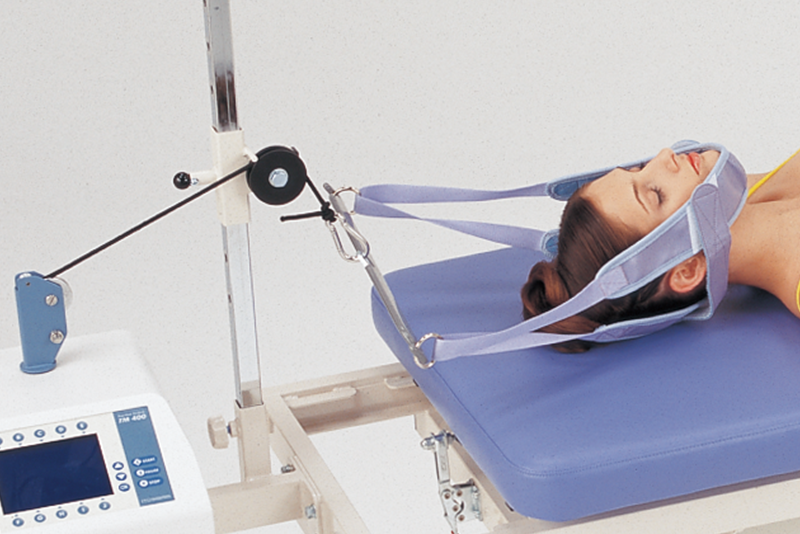

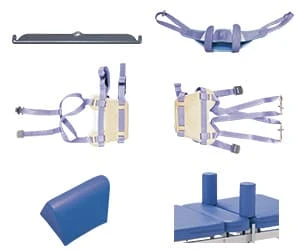

VARIOUS TYPES OF TRACTION HARNESSES CAN BE SUPPLIED

VARIOUS TYPES OF TRACTION HARNESSES CAN BE SUPPLIED

Various type of traction harnesses and its accessories available TM-400 to suit the treatment on each part of body; cervical, pelvic and thoracic area.

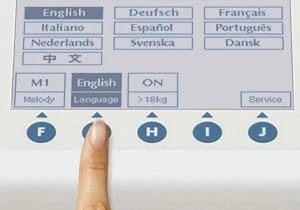

MULTI LANGUAGES

MULTI LANGUAGES

You can select language from English, German, French, Italian, Spanish, Portuguese, Danish, Dutch, Swedish & Chinese.

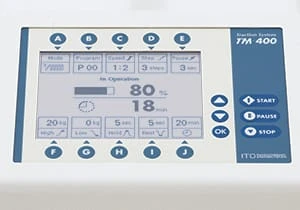

TWO VALUES DISPLAYED ON THE SAME SCREEN

TWO VALUES DISPLAYED ON THE SAME SCREEN

As both the set value and the actual value of traction force are displayed on the same screen during treatment, you can visually check if the traction unit works properly and safely.

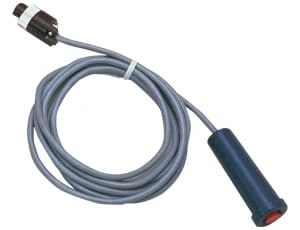

PATIENT SWITCH FOR SAFETY

PATIENT SWITCH FOR SAFETY

Patient Switch is of course supplied with main unit as standard accessory for safe treatment.

Specifications

Power supply AC 100–240 V, 50/60 Hz
Power consumption 75 VA
force range
High
1–90 kg (198 lbs) ± 3 kg
Low
0–89 kg (197 lbs) ± 3 kg
time range
Hold
0–99 sec.
Rest
0–99 sec.
Number of ramp steps 2–9 steps
Pause time of each ramp step 2–20 sec.
Memorable program numbers 30
Traction mode Intermittent, Static, Progressive / intermittent, Progressive / static, Progressive / regressive, Cyclic / intermittent, Cyclic / static, Cyclic
Timer 1–99 min.
Safety class according to IEC 60601-1 Class I, Type B
Display size 116 (W) x 87 (H) mm
Dimensions 260 (W) x 350 (D) x 295 (H) mm
Weight Approx. 14 kg
