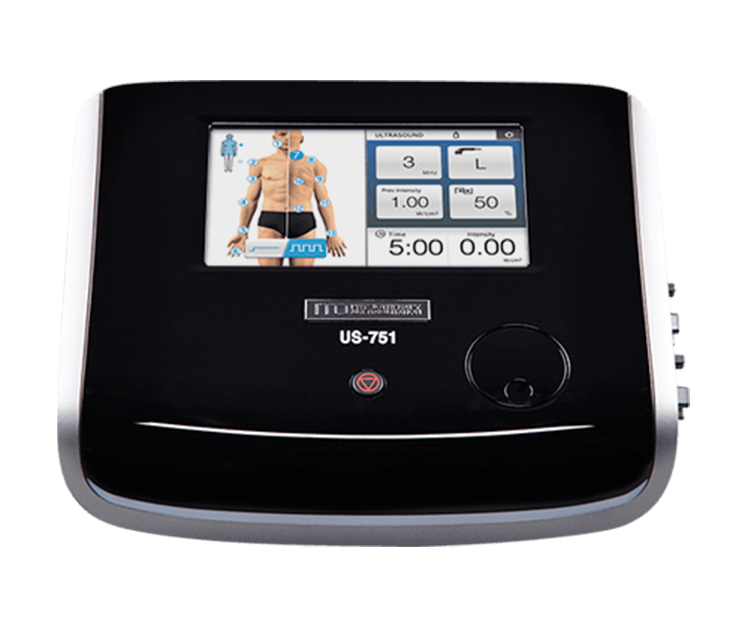

US-751
US-751

Features

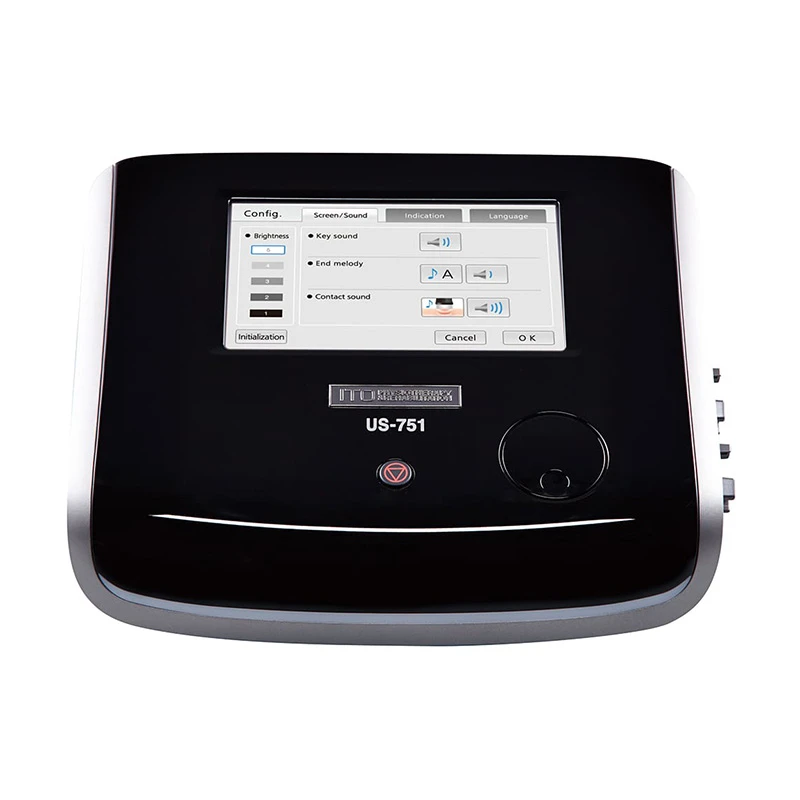

7-INCH TFT COLOR TOUCH SCREEN

7-INCH TFT COLOR TOUCH SCREEN

The large color touch screen dramatically improves visibility and functionality. The screen is 20% lager than the screen used in previous models.

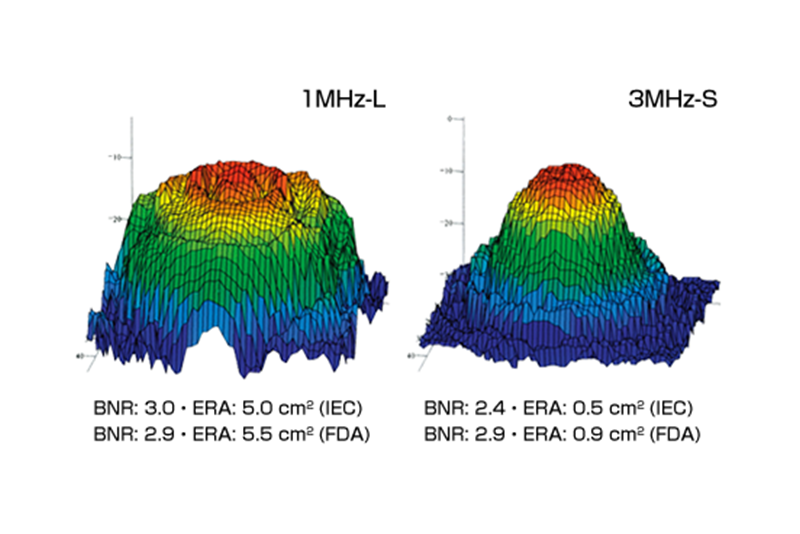

LOW BNR

LOW BNR

BNR is one of the indications for quality of the ultrasound beam. The BNR of US-751 is 2.4 to 3.0 (IEC standards), a significantly low ratio. Low beam non-uniformity ratio prevents hot spots and tissue damages.

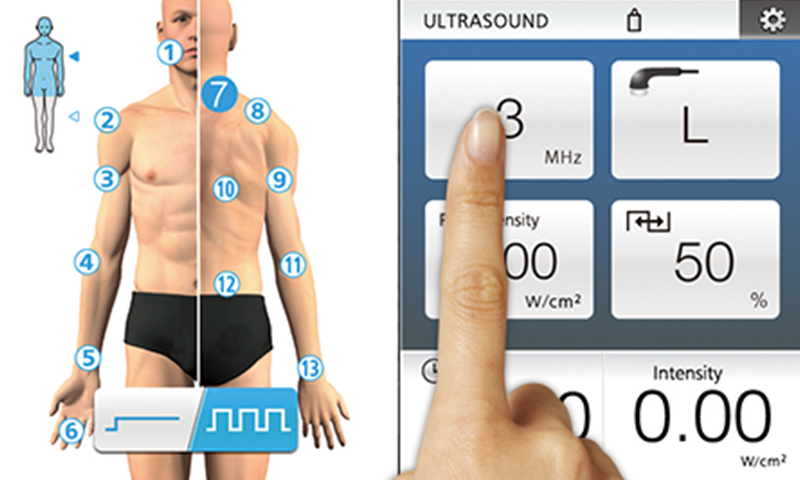

42 EFFECTIVE CLINICAL PROGRAMS

42 EFFECTIVE CLINICAL PROGRAMS

You can simply choose the area to be treated from Human Body Diagram. 42 therapy parameters are pre-programmed. All the pre-programmed parameters can be modified to suit your particular needs.

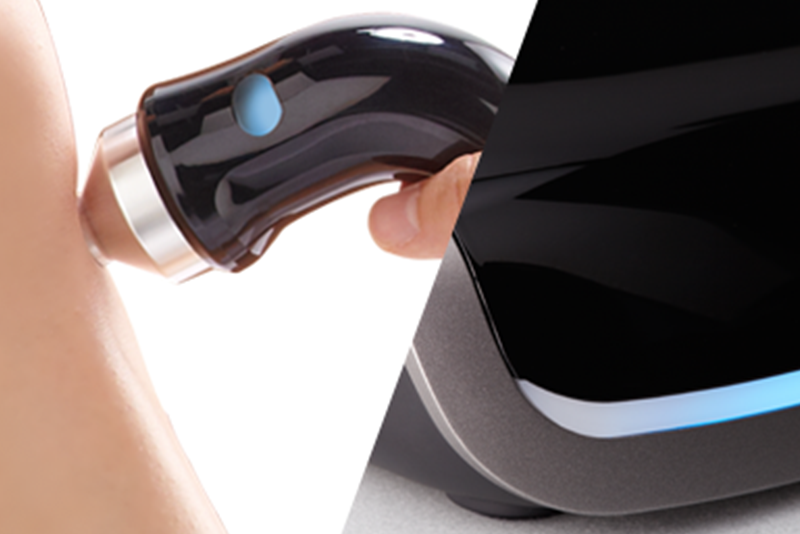

VISUAL PROBE CONTACT STATUS

VISUAL PROBE CONTACT STATUS

Light indications on both ultrasound probe and main unit to visually check whether the ultrasound energy is safely and effectively conducted into human body.

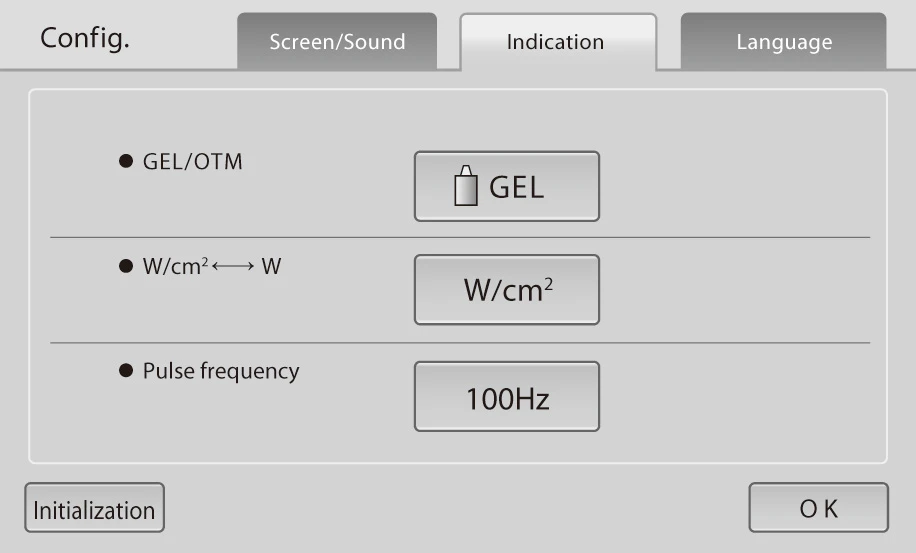

SELECTABLE COUPLING SENSITIVITY

SELECTABLE COUPLING SENSITIVITY

You can select the appropriate coupling sensitivity between ultrasound gel and medicated gel.

COMBINATION THERAPY AVAILABLE

COMBINATION THERAPY AVAILABLE

By using exclusive optional accessory, US-751 can be combined to ES-320 and ES-521 for combination therapy.

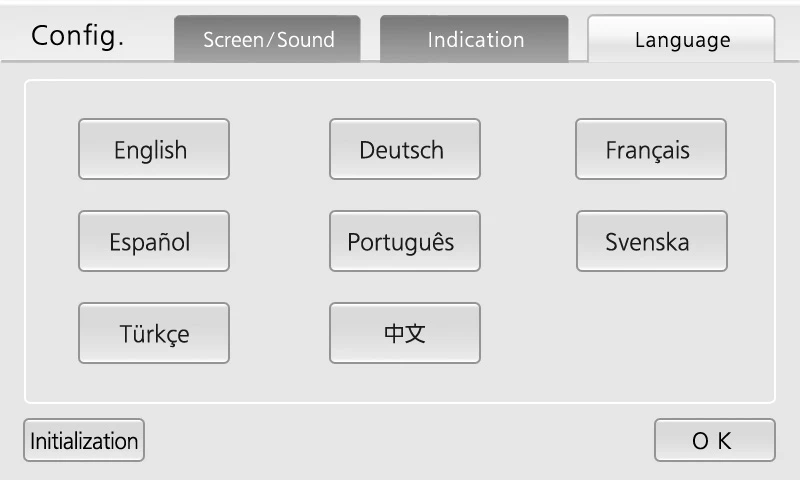

MULTI LANGUAGES

MULTI LANGUAGES

You can select language from English, German, French, Spanish, Portuguese, Swedish, Turkish & Chinese.

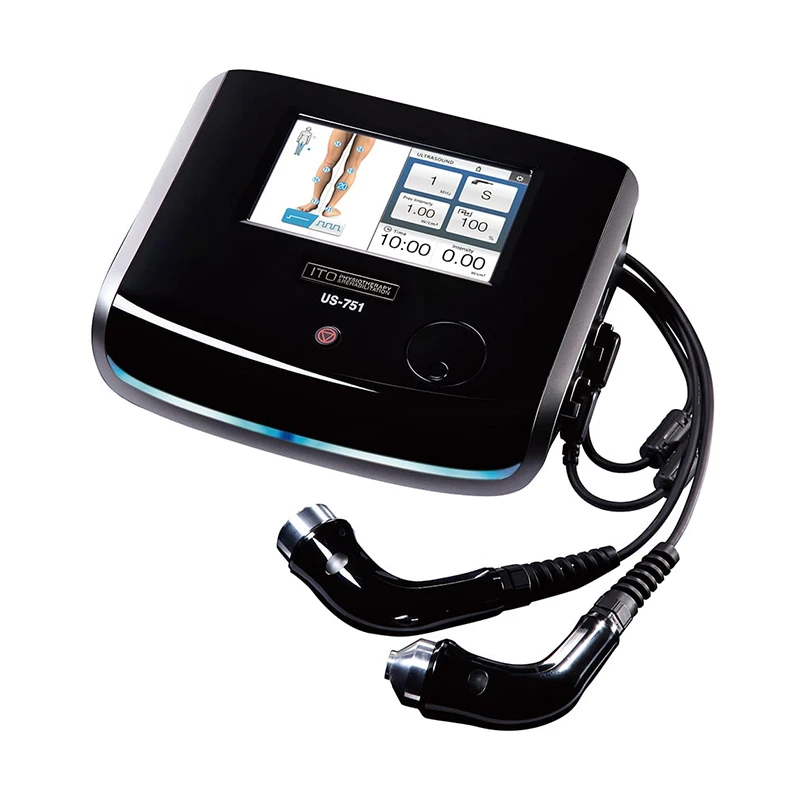

2 ULTRASOUND PROBES CONNECTABLE

2 ULTRASOUND PROBES CONNECTABLE

You can connect both small (2 cm2) and large (11 cm2) head ultrasound probes to quickly change the treatment head.

Specifications

Power supply AC 100–240 V, 50/60 Hz
Intensity (max.) Continuous: 2.00 W/cm2 ± 20%
Pulsed: 3.00 W/cm2 ± 20%
Ultrasound frequency 1.0 MHz, 3.0 MHz ± 10%
Duty cycles 5%, 10%, 20%, 30%, 40%, 50%, 100% ± 5%
Pre-programmed parameters (modifiable) 42
BNR US Probe head (IEC Standards)
Large
1 MHz: 3.0 ± 30%
3 MHz: 2.4 ± 30%
Small
1 MHz: 2.9 ± 30%
3 MHz: 2.4 ± 30%
ERA US Probe head (IEC Standards)
Large
1 MHz: 5.0 cm2 ± 20%
3 MHz: 5.0 cm2 ± 20%
Small
1 MHz: 0.7 cm2 ± 20%
3 MHz: 0.5 cm2 ± 20%
Timer 30 min. ± 1 min. at maximum
Safety class according to IEC 60601-1 Class I, Type BF
Dimensions 290 (W) x 233 (D) x 96 (H) mm
Weight Approx. 3.0 kg
Number of probe connections 2
Probe head
Large
11 cm2
Small
2 cm2
Combo use available (optional accessory required) With ES-521 and ES-320
Pulse frequency 16 Hz, 48 Hz, 100 Hz ± 5%
